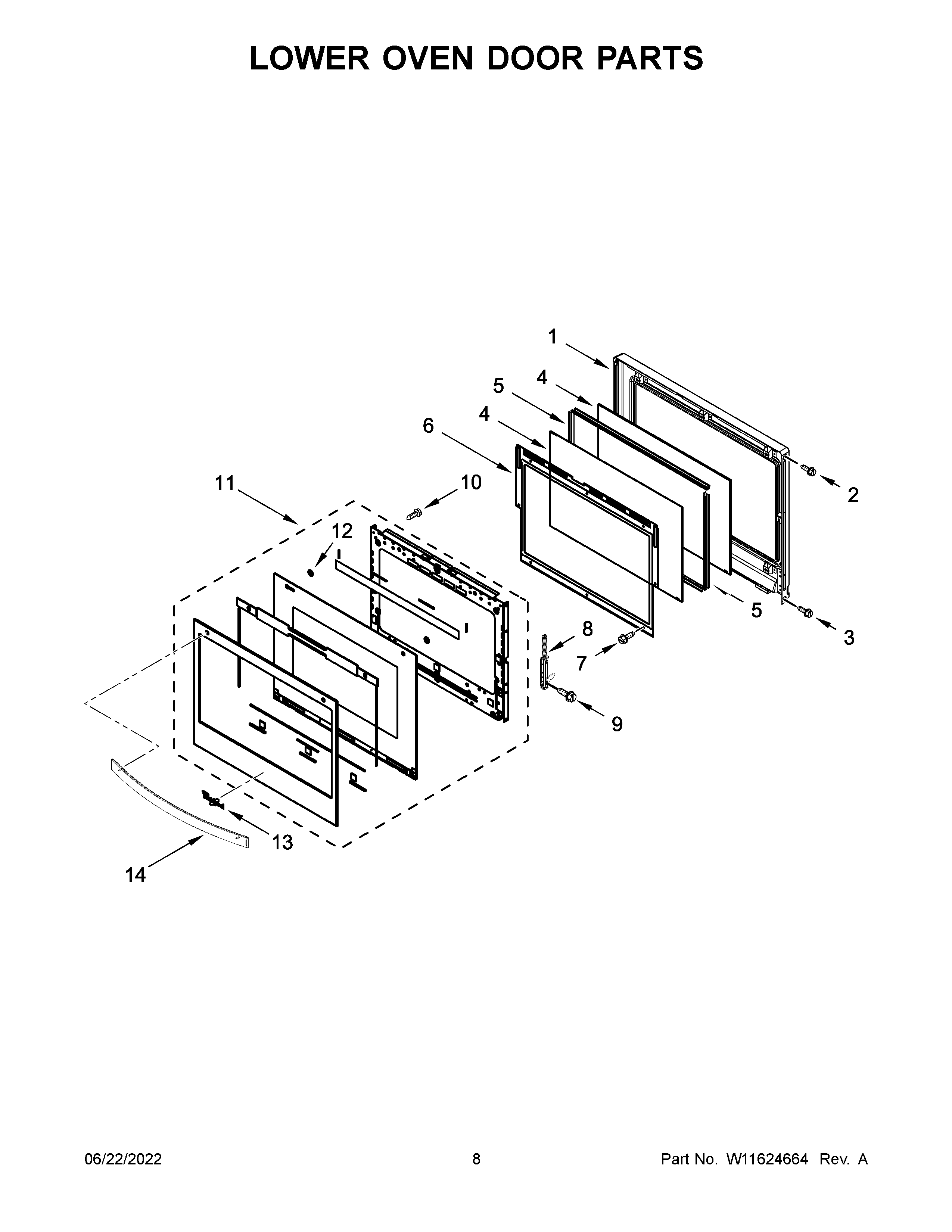

WOD51EC7HW20 05 – LOWER OVEN DOOR PARTS

WOD51EC7HW20 05 – LOWER OVEN DOOR PARTS

Written by

in

WOD51EC7HW20 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8AW11296080 Whirlpool Door Hinge
8W11296079 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600328 Whirlpool Door Glass
11BW11600331 Whirlpool Oven Door Glass
11ADOOR ASSEMBLY (WHITE)
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14AW11200667 Whirlpool Door Handle
14W11115278 Whirlpool Door Handle
14BW11113204 Whirlpool Door Handle
