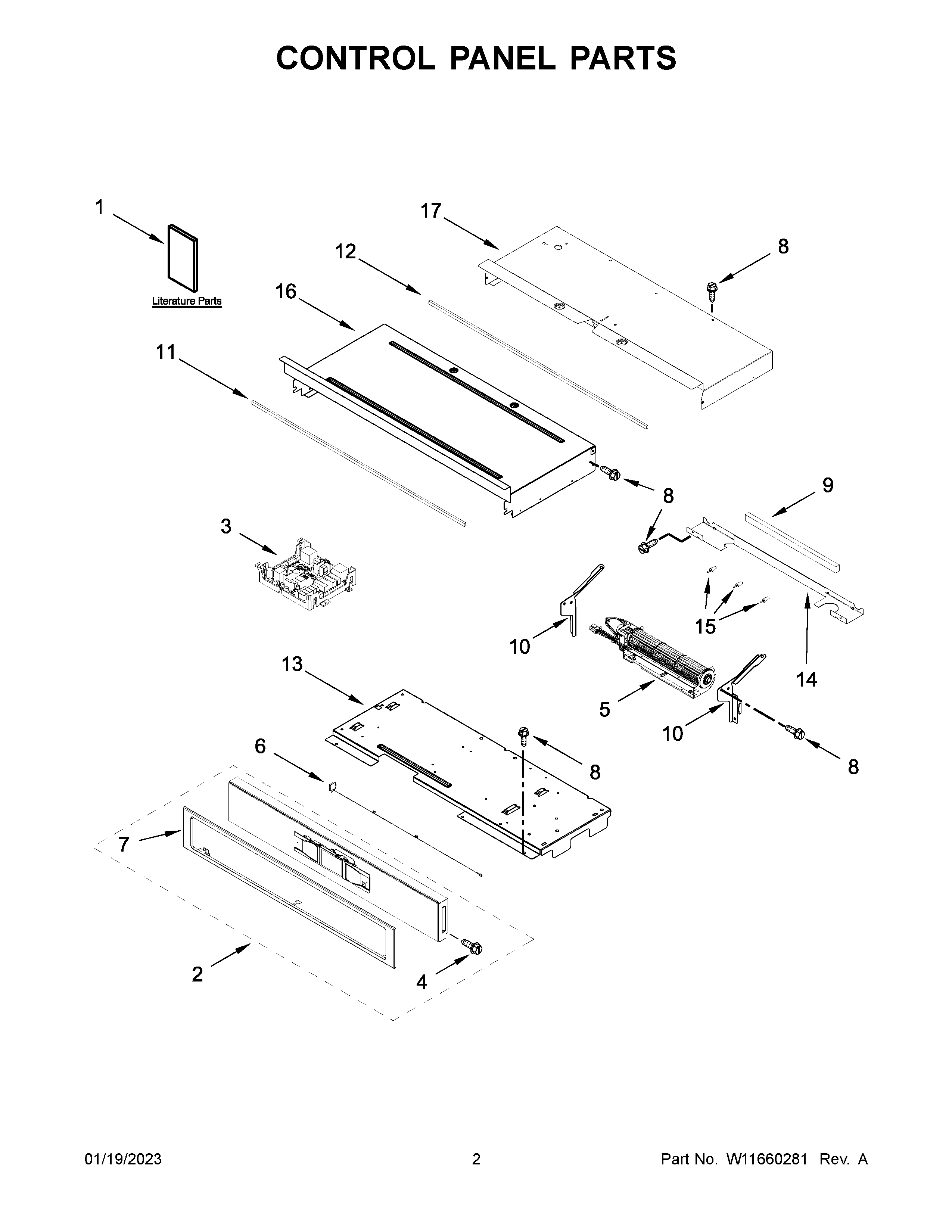

WOD51EC7HW21 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11233570 Whirlpool Wire Harness
NI	W11245677 Whirlpool Wire Harness
NI	W11245673 Whirlpool Wire Harness
1A	QUICK START GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2	W11600357 Whirlpool Control Panel
2A	W11600359 Whirlpool Control Panel
3A	W11261169-includeCORE Whirlpool W11261169 Refrigerator Electronic Control Board + Core
3	W11261167 Whirlpool Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W11537624 Whirlpool Antenna Assembly
7	W11115276 Whirlpool Skin Panel
7A	SKIN, CONTROL PANEL (WHITE)
8	SCREW
9	W10491987 Whirlpool Foam Seal
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	GASKET, RUBBER (652MM)
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, TOP FRONT 27 IN CHASSIS
17	COVER, TOP BACK 27 IN CHASSIS
