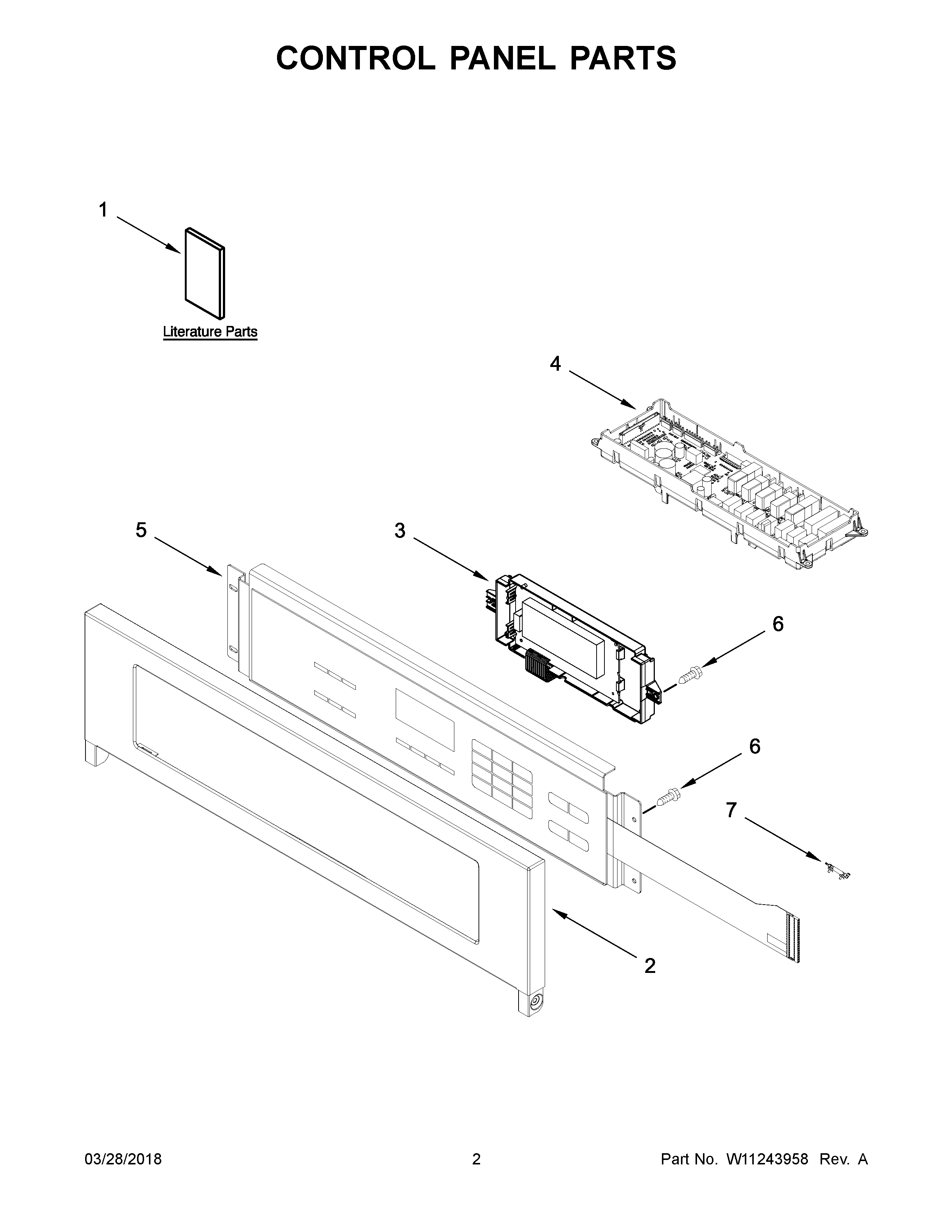

WOD51ES4EB01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10737896 Whirlpool Wire Harness
NI	W11177680 Whirlpool Wire Harness
NI	W11157779 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	4451761 Whirlpool Oven Support Bracket
NI	8528351 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
1D	DIAGRAM, WIRING
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1B	SAFER COOKING TIPS (ENGLISH
2	W10702189 Whirlpool Control Panel
2B	W10704699 Whirlpool Control Panel
2A	W10704698 Whirlpool Control Panel
3	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
4	W10807576 Whirlpool Electronic Control Board + Core
5	W10695003 Whirlpool Membrane Switch
5A	W10695004 Whirlpool Membrane Switch
5B	W10694994 Whirlpool Membrane Switch
6	SCREW
7	FUSE-THRML WALL OVEN
