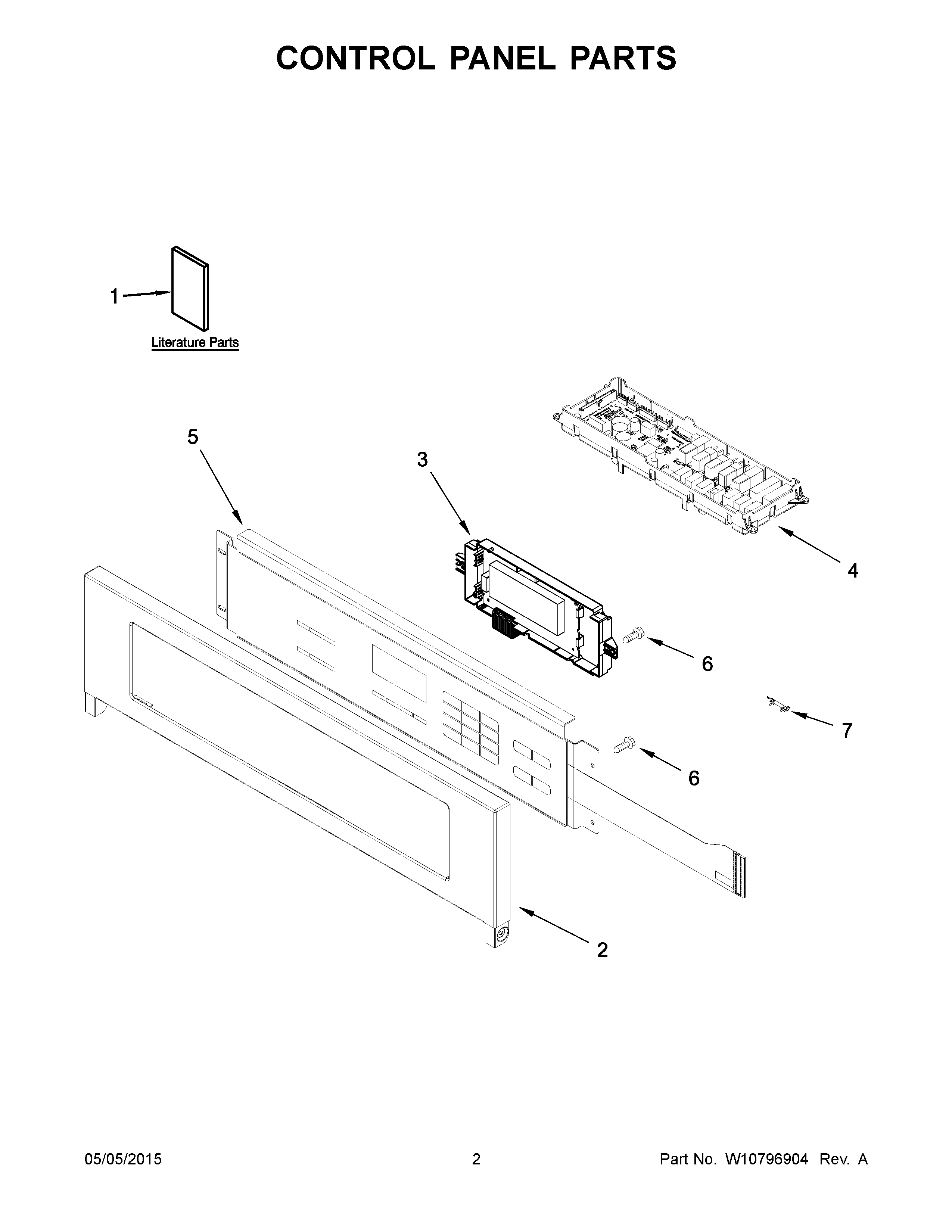

WOD51ES4ES00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157779 Whirlpool Wire Harness
NI	W10691785 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	4451761 Whirlpool Oven Support Bracket
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
2A	W10704698 Whirlpool Control Panel
2B	W10704699 Whirlpool Control Panel
2	W10702189 Whirlpool Control Panel
3	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
4	W10807576 Whirlpool Electronic Control Board + Core
5	W10695003 Whirlpool Membrane Switch
5A	W10695004 Whirlpool Membrane Switch
5B	W10694994 Whirlpool Membrane Switch
6	WP3400832 Whirlpool Screw
7	FUSE-THRML WALL OVEN
