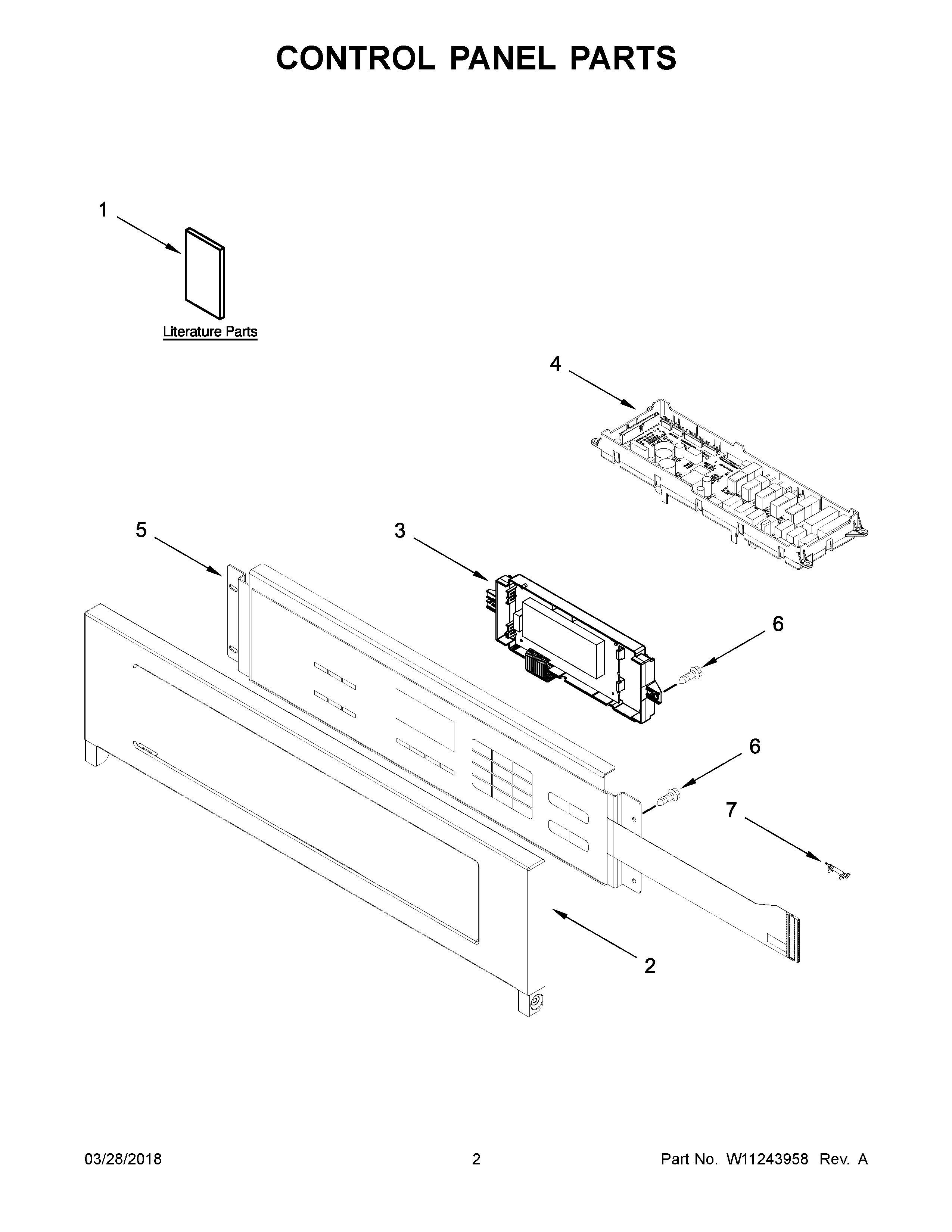

WOD51ES4EW01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10737896 Whirlpool Wire Harness
NIW11177680 Whirlpool Wire Harness
NIW11157779 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NI4451761 Whirlpool Oven Support Bracket
NI8528351 Whirlpool Clip
NIWPW10339879 Whirlpool Wire Tie
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
1DDIAGRAM, WIRING
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CSHEET, TECH
1BSAFER COOKING TIPS (ENGLISH
2W10702189 Whirlpool Control Panel
2BW10704699 Whirlpool Control Panel
2AW10704698 Whirlpool Control Panel
3WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
4W10807576 Whirlpool Electronic Control Board + Core
5W10695003 Whirlpool Membrane Switch
5AW10695004 Whirlpool Membrane Switch
5BW10694994 Whirlpool Membrane Switch
6SCREW
7FUSE-THRML WALL OVEN
