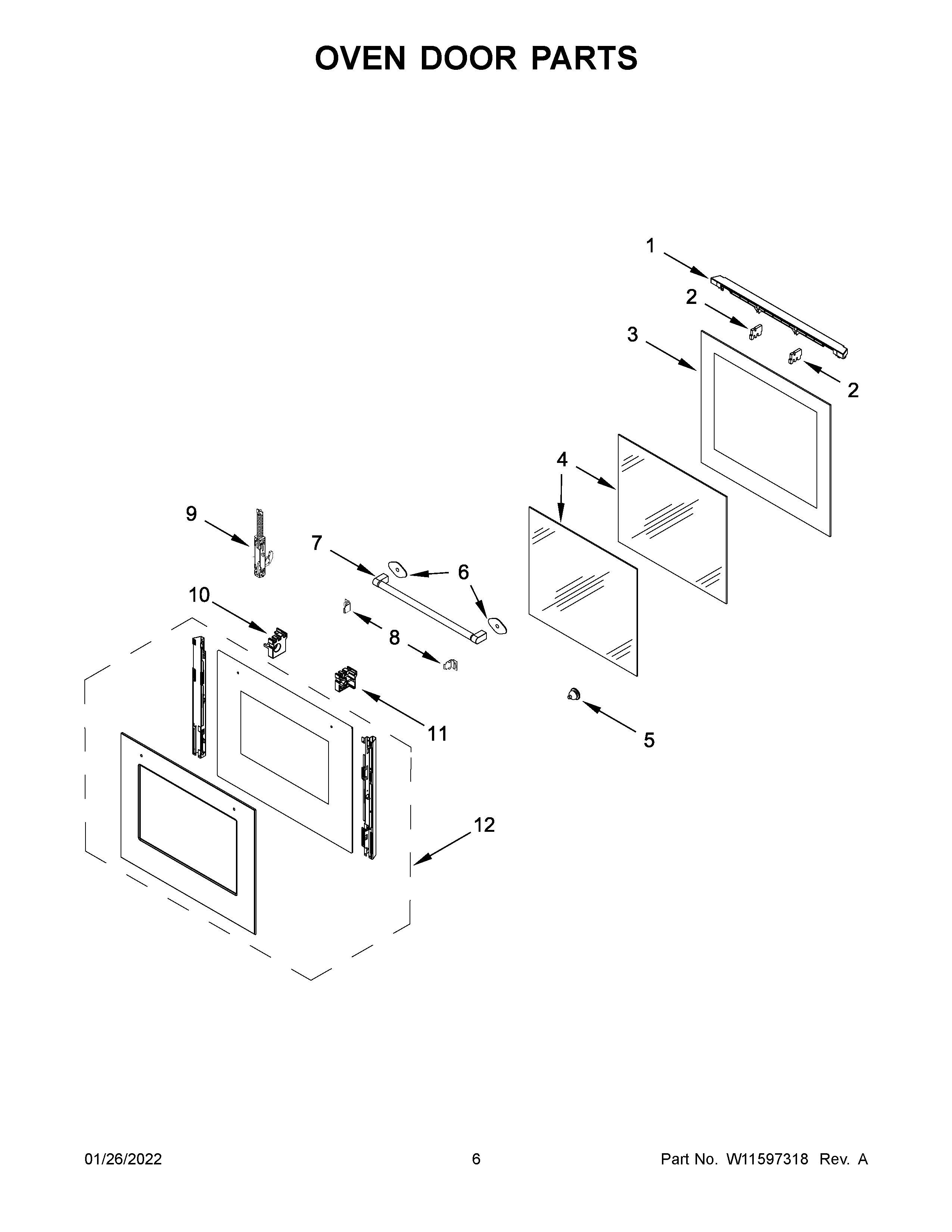

WOD52ES4MB00 04 – OVEN DOOR PARTS

WOD52ES4MB00 04 – OVEN DOOR PARTS

Written by

in

WOD52ES4MB00 04 – OVEN DOOR PARTS

Products

PositionProduct
1W10518369 Whirlpool Vent Trim
2W10518307 Whirlpool Spacer
3W11348805 Whirlpool Door Glass
4WPW10518377 Whirlpool Door Glass
5SPACER, OVEN DOOR GLASS
6W10831792 Whirlpool Spacer Assembly
7BW11594163 Whirlpool Door Handle
7AW11594197 Whirlpool Door Handle
7W11594201 Whirlpool Door Handle
8481010387617 Whirlpool Bracket Support
9W11594221 Whirlpool Door Hinge
10W11509863 Whirlpool Bracket Support
11W10518384 Whirlpool Dishwasher Support Bracket
12DASSEMBLY, UPPER OUTER DOOR (BLACK)
12CW11594421 Whirlpool Door Glass
12BW11594222 Whirlpool Glass Door
12AW11594232 Whirlpool Door Glass
12W11594233 Whirlpool Glass Door
12EW11594258 Whirlpool Door Glass Assembly
