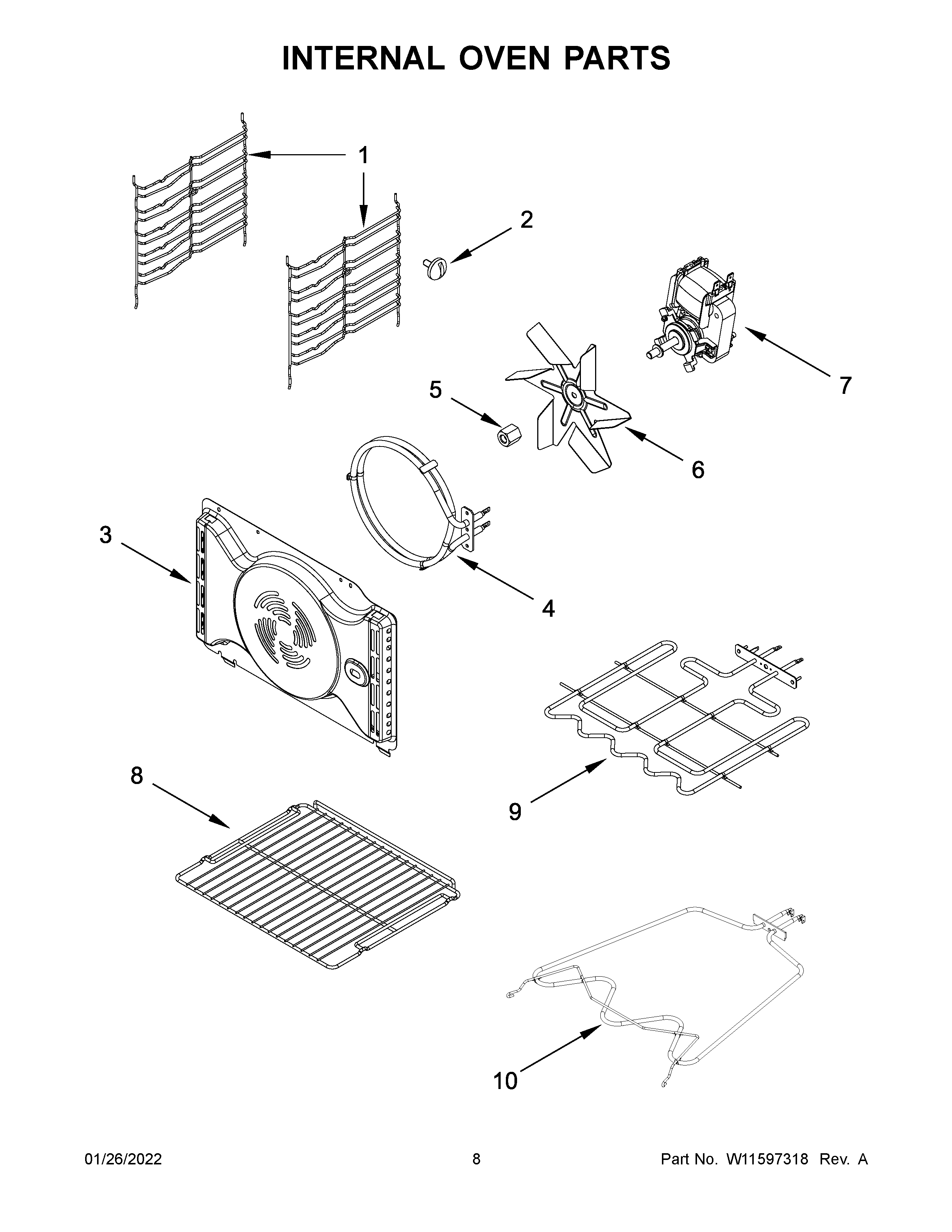

WOD52ES4MB00 05 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	W11236920 Whirlpool Support Bracket
2	SCREW, GRID
3	W11594223 Whirlpool Conventional Baffle
4	ELEMENT, CONVECTION
5	NUT
6	WHEEL-FAN
7	MOTOR-FAN
8	W11236918 Whirlpool Rack
9	W11347861 Whirlpool Grill Element
10	W11348032 Whirlpool Bake Element
