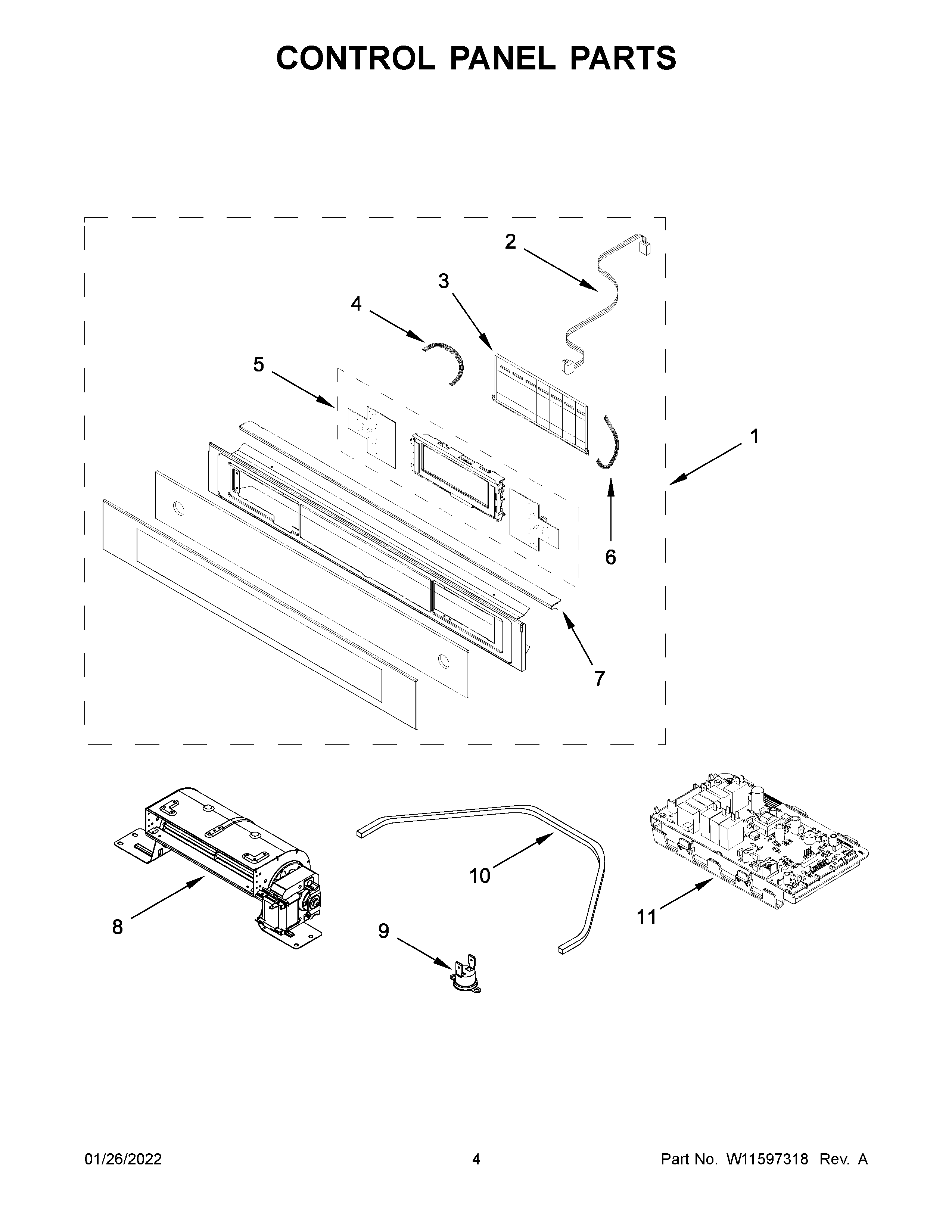

WOD52ES4MZ00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11594228 Whirlpool Console + Core
1W11594257 Whirlpool Console + Core
2HARNESS, TOUCH DISPLAY
3COVER, CONTROL
4WIRING, RIGHT CONTROL
5W11594229 Whirlpool Display
6W11348033 Whirlpool Wire Harness
7W11236834 Whirlpool Oven Trim Panel
7ATRIM, VENT (BLACK)
8W11347859 Whirlpool Blower Assembly
9W11259047 Whirlpool Thermostat
10GASKET, BLOWER MOTOR
11W11594418-includeCORE Whirlpool W11594418 Refrigerator Electronic Control Board + Core
