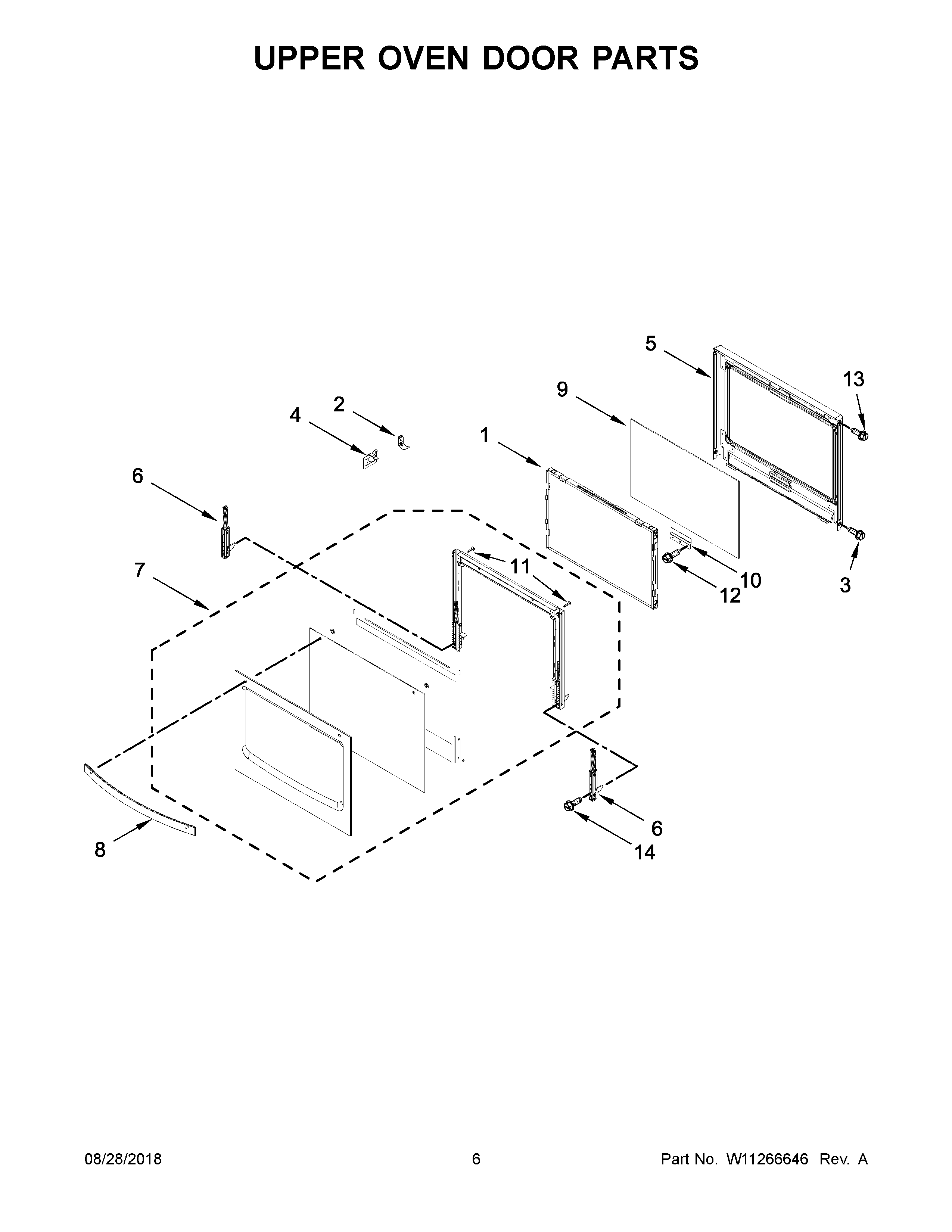

WOD77EC0HB01 04 – UPPER OVEN DOOR PARTS

WOD77EC0HB01 04 – UPPER OVEN DOOR PARTS

Written by

in

WOD77EC0HB01 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3SCREW (BLACK)
4W11025615 Whirlpool Glass Bracket
5WPW10709147 Whirlpool Glass Frame
6W11044773 Whirlpool Door Hinge
7W11455427 Whirlpool Door Glass
7AW11110282 Whirlpool Door Glass
8W11110491 Whirlpool Door Handle
8AW11110492 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14WP3196183 Whirlpool Screw
