WOD77EC0HS01 05 – LOWER OVEN DOOR PARTS

WOD77EC0HS01 05 – LOWER OVEN DOOR PARTS

Written by

in

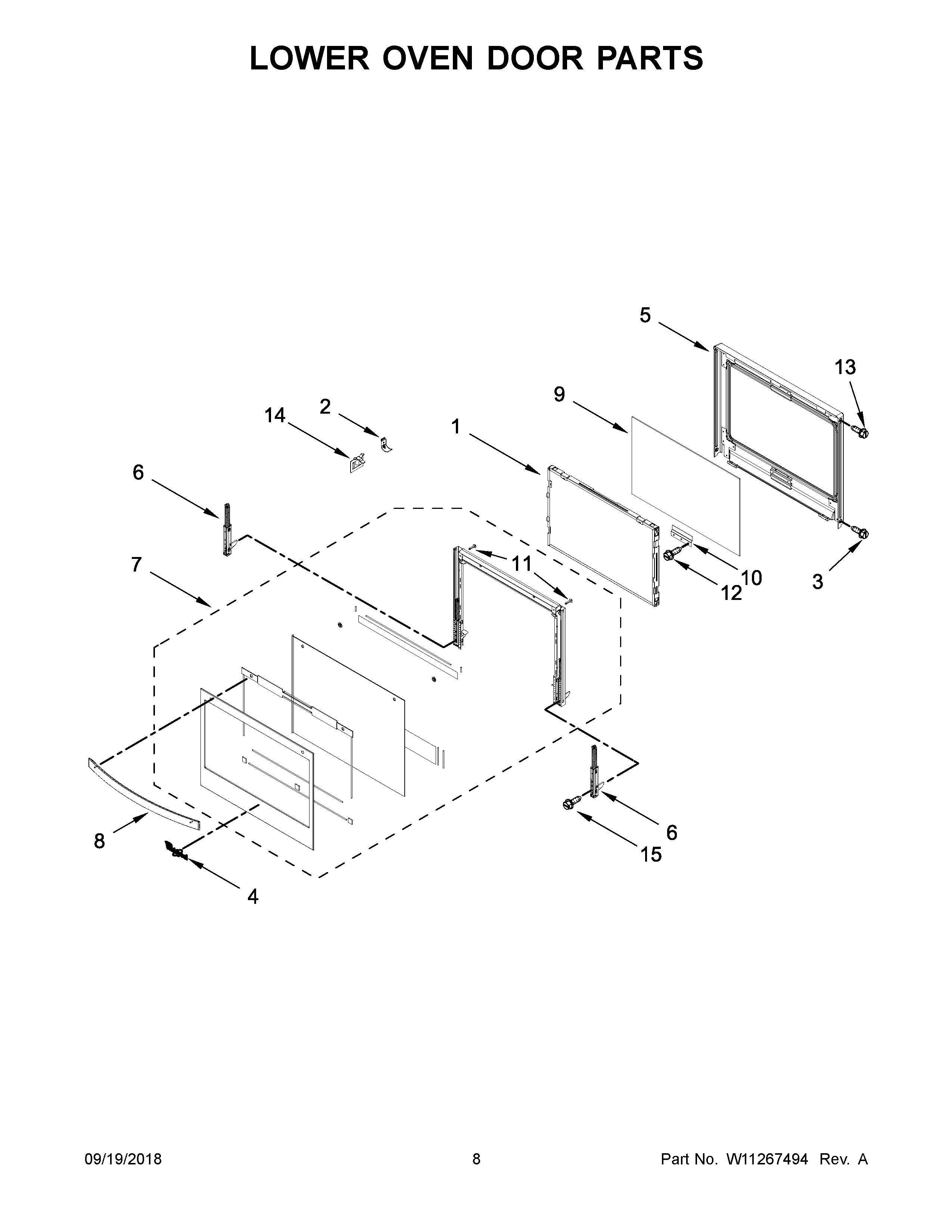

WOD77EC0HS01 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3SCREW (BLACK)
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10709147 Whirlpool Glass Frame
6W11044773 Whirlpool Door Hinge
7W11455430 Whirlpool Door Glass
7AW11110284 Whirlpool Glass Door
8W11110499 Whirlpool Stove Door Handle
8AW11110500 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14W11025615 Whirlpool Glass Bracket
15WP3196183 Whirlpool Screw
