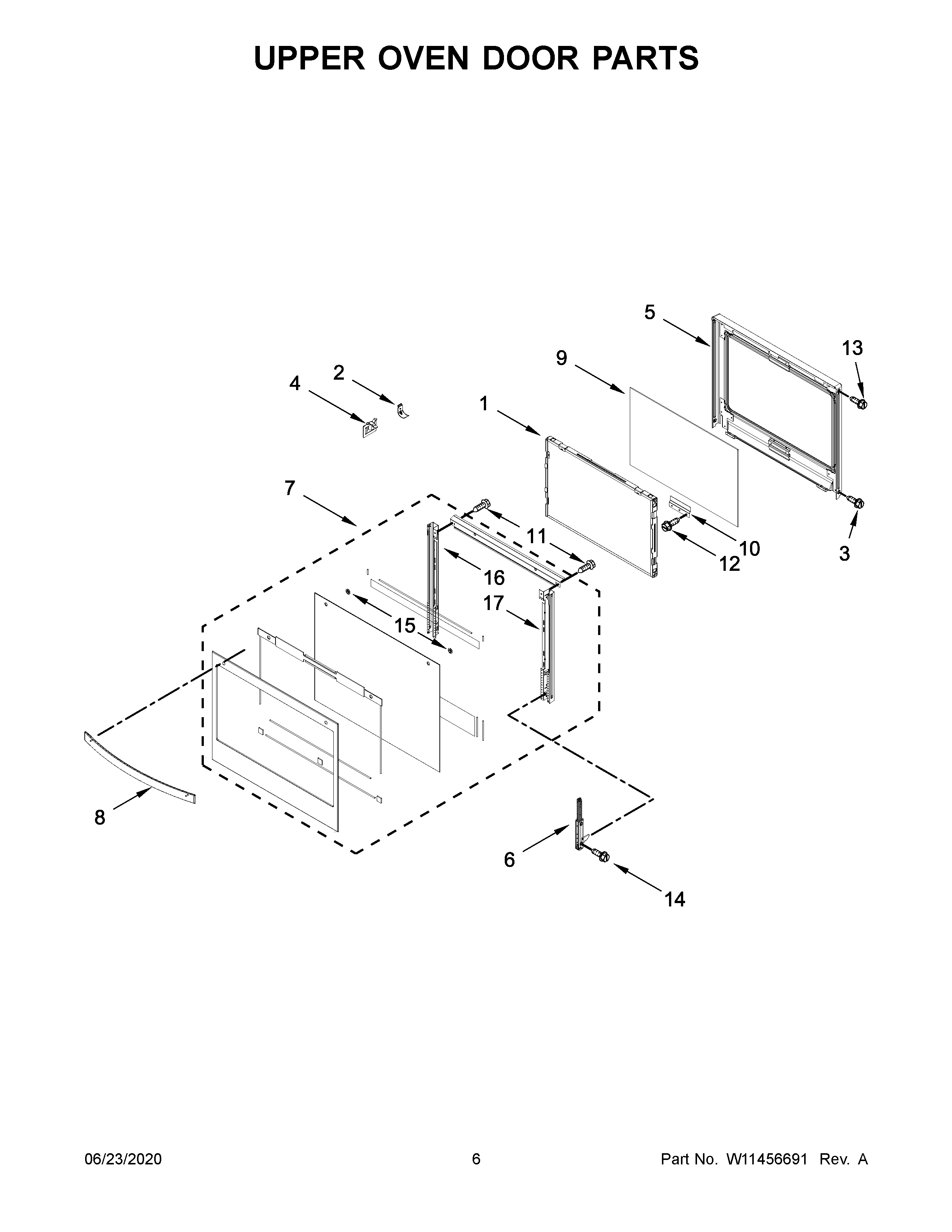

WOD77EC0HS02 04 – UPPER OVEN DOOR PARTS

WOD77EC0HS02 04 – UPPER OVEN DOOR PARTS

Written by

in

WOD77EC0HS02 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11455086 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3SCREW (BLACK)
4W11025615 Whirlpool Glass Bracket
5WPW10709147 Whirlpool Glass Frame
6W11411966 Whirlpool Door Hinge
7W11455430 Whirlpool Door Glass
7AW11457673 Whirlpool Door Glass
8AW11110500 Whirlpool Door Handle
8W11110499 Whirlpool Stove Door Handle
9W11455100 Whirlpool Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14WP3196183 Whirlpool Screw
15W11676355 Whirlpool Washer
16W11355410 Whirlpool Support Bracket Assembly
17W11355411 Whirlpool Support Bracket
