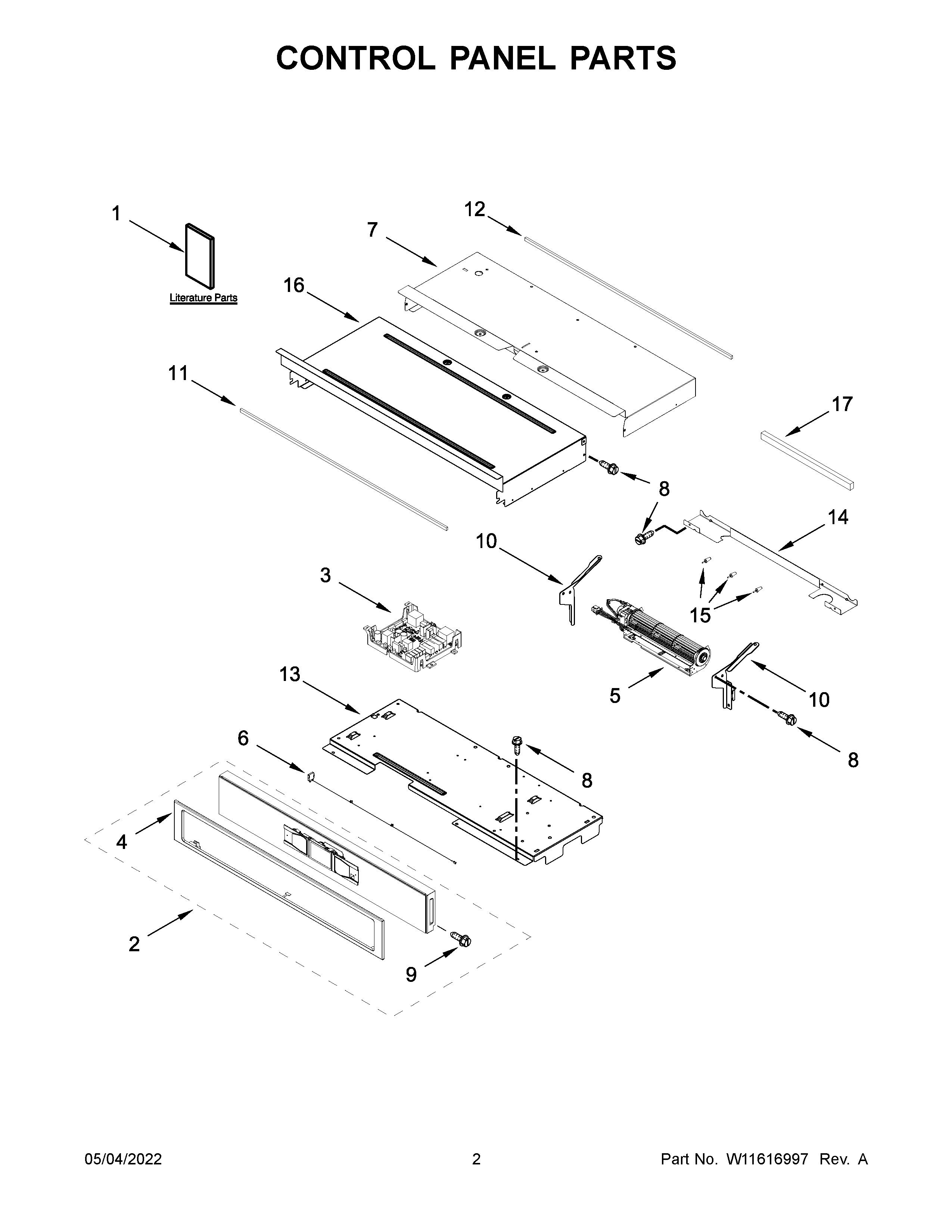

WOD77EC0HS20 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11699910 Whirlpool Wire Harness
NI	W11727826 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11233570 Whirlpool Wire Harness
NI	W11245677 Whirlpool Wire Harness
NI	W11245672 Whirlpool Wire Harness
1A	QUICK START GUIDE
1	OWNER'S MANUAL
1B	TECH SHEET
2A	W11616681 Whirlpool Console + Core
2	W11616680 Whirlpool Console + Core
3A	W11261164-includeCORE Whirlpool W11261164 Refrigerator Electronic Control Board + Core
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W11113207 Whirlpool Skin Panel
4A	SKIN, CONTROL PANEL (BLACK STAINLESS)
5	BLOWER
6	W11537624 Whirlpool Antenna Assembly
7	COVER, 30 IN CHASSIS TOP BACK
8	SCREW
9	SCREW (BLACK)
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	GASKET, RUBBER
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
17	W10491987 Whirlpool Foam Seal
