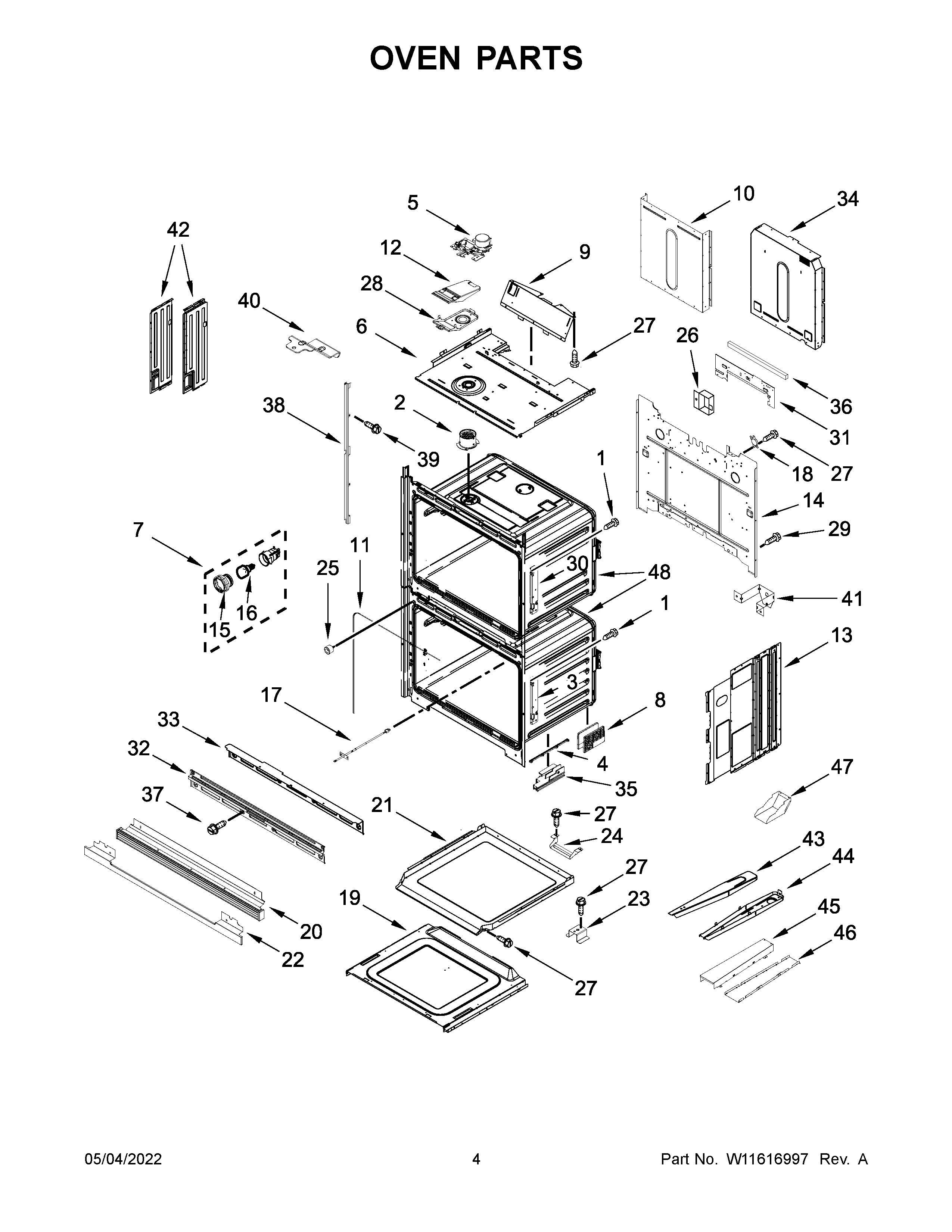

WOD77EC0HS20 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, CAVITY
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3W11712405 Whirlpool Receiver Hinge
3AW11712406 Whirlpool Receiver Hinge
4W11598116 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11325541 Whirlpool Indicator Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11134657 Whirlpool Rear Cover
11W11676903 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS
15W11450856 Whirlpool Light Lens
16W11454079 Whirlpool Light Bulb
17W11598120 Whirlpool Thermostat
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11598202 Whirlpool Oven Vent
20AW11369884 Whirlpool Oven Heat Deflector
21COVR-ACESS
22W11598135 Whirlpool Trim
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
268285593 Whirlpool Oven Wire Cover
27SCREW
28BASE, VENT EXHAUST
29WP693995 Whirlpool Screw
30HINGE-RECV
31BRACKET, U-SHAPE
32W11235482 Whirlpool Exhaust Vent
33W11715951 Whirlpool Vent Trim
34W11165250 Whirlpool Rear Cover
35AW11598168 Whirlpool Leveling Foot
35W11598169 Whirlpool Foot Level Assembly
36FOAM, U-BRACKET
37WPY706189 Whirlpool Stove Screw
38W11235460 Whirlpool Mounting Rail
38AW11235461 Whirlpool Rail Mounting
39W11602623 Whirlpool Screw
40BRACKET, TOP FRONT
41HAT BRACKET, VENT
42AW11598151 Whirlpool Side Cover
42W11598150 Whirlpool Side Cover
43COVER, TOP BACK EXHAUST
44BASE, TOP BACK EXHAUST
45COVER, LOWER BACK EXHAUST
46BASE, LOWER BACK EXHAUST
47DEFLECTOR, LOWER BACK EXHAUST
