WOD77EC0HS20 06 – INTERNAL OVEN PARTS

WOD77EC0HS20 06 – INTERNAL OVEN PARTS

Written by

in

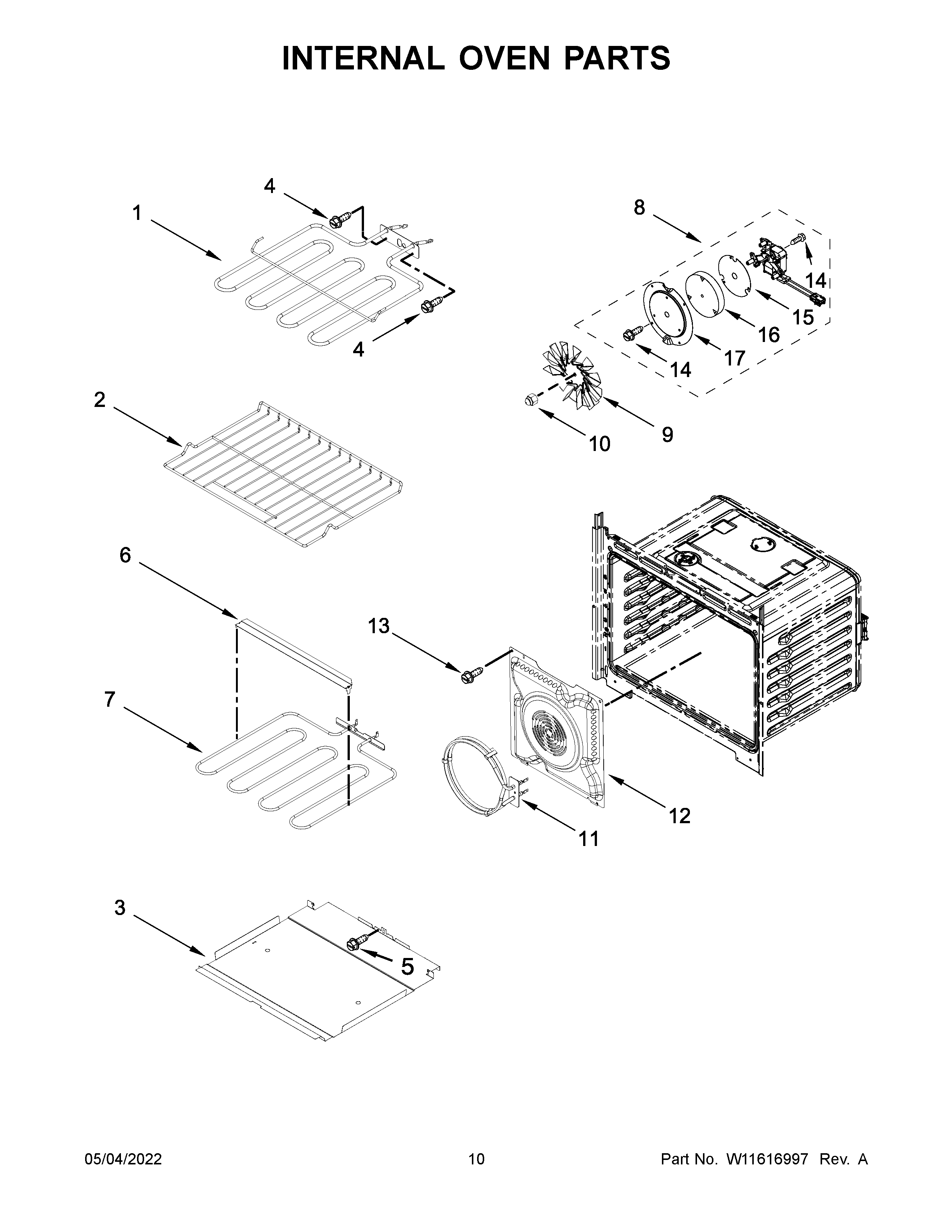

WOD77EC0HS20 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11617232 Whirlpool Broil Element
2W11218798 Whirlpool Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W11617227 Whirlpool Fan Motor
9W11548753 Whirlpool Convection Fan
10W11548755 Whirlpool Nut
11WPW10260248 Whirlpool Element Assembly
12W10359278 Whirlpool Baffle Conv
13WP74003976 Whirlpool Screw
14W10850807 Whirlpool Screw
15PLATE, CONVECT MOTOR
16INSULATION, CONVECT MOTOR
17COVER, CONVECT PLATE
