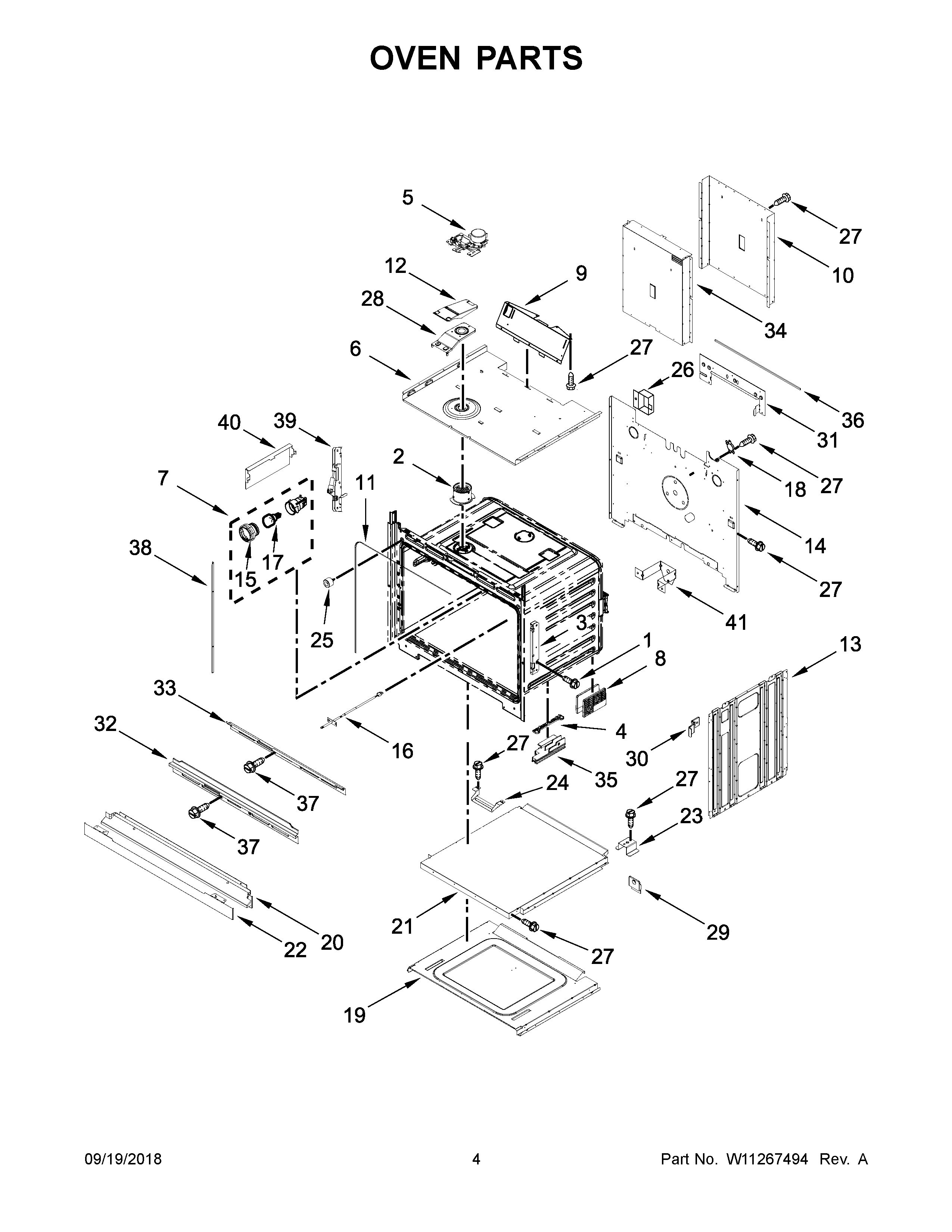

WOD77EC0HV01 03 – OVEN PARTS

WOD77EC0HV01 03 – OVEN PARTS

Written by

in

WOD77EC0HV01 03 – OVEN PARTS

Products

PositionProduct
NIW11684789 Whirlpool Insulation
NIW11688731 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11685004 Whirlpool Insulation
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
7WPW10734063 Whirlpool Indicator Light
8FOOT, BASE
9W10904163 Whirlpool Vent Deflector
10DUCT, CHASSIS BACK (LOWER)
11W11623080 Whirlpool Gasket
12W10616810 Whirlpool Exhaust Cover
13PANEL-SIDE
13ASIDE, CHASSIS
14BACK, CHASSIS
15WPW10412722 Whirlpool Light Lens
16W10859573 Whirlpool Range Oven Temperature Sensor
17WPW10412711 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20WPW10351279 Whirlpool Oven Vent
20AASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
21WPW10283008 Whirlpool Access Cover
22ATRIM, BOTTOM VENT (BLACK STAINLESS)
22WPW10327377 Whirlpool Trim Kit
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
268285593 Whirlpool Oven Wire Cover
27SCREW
28W10616809 Whirlpool Vent Tube
29SPACER, CENTER
30SPACERS, FRONT
31BRACKET, U-SHAPE
32VENT, CENTER 30“
33VENT, TOP 30“
34W10318196 Whirlpool BA Chassis
35W10848812 Whirlpool Level Foot
36W10728475 Whirlpool Foam Seal
37SCREW
38AW10536161 Whirlpool Oven Trim Cover Kit
39W11045086 Whirlpool Hinge Receptacle
40SHIELD, SLOW CLOSE HINGE
41HAT BRACKET, VENT
