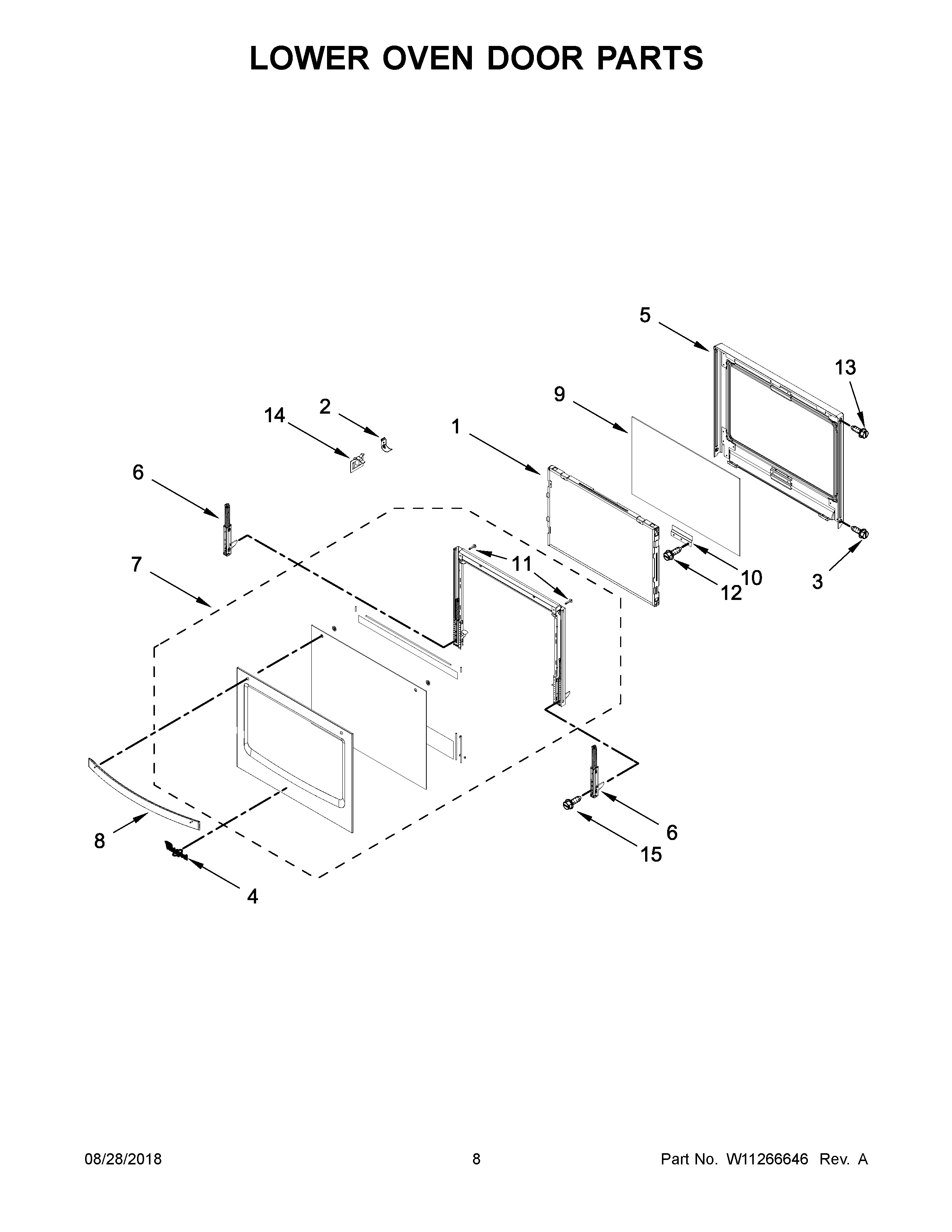

WOD77EC0HW01 05 – LOWER OVEN DOOR PARTS

WOD77EC0HW01 05 – LOWER OVEN DOOR PARTS

Written by

in

WOD77EC0HW01 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3SCREW (BLACK)
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10709147 Whirlpool Glass Frame
6W11044773 Whirlpool Door Hinge
7AW11110282 Whirlpool Door Glass
7W11455427 Whirlpool Door Glass
8W11110491 Whirlpool Door Handle
8AW11110492 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14W11025615 Whirlpool Glass Bracket
15WP3196183 Whirlpool Screw
