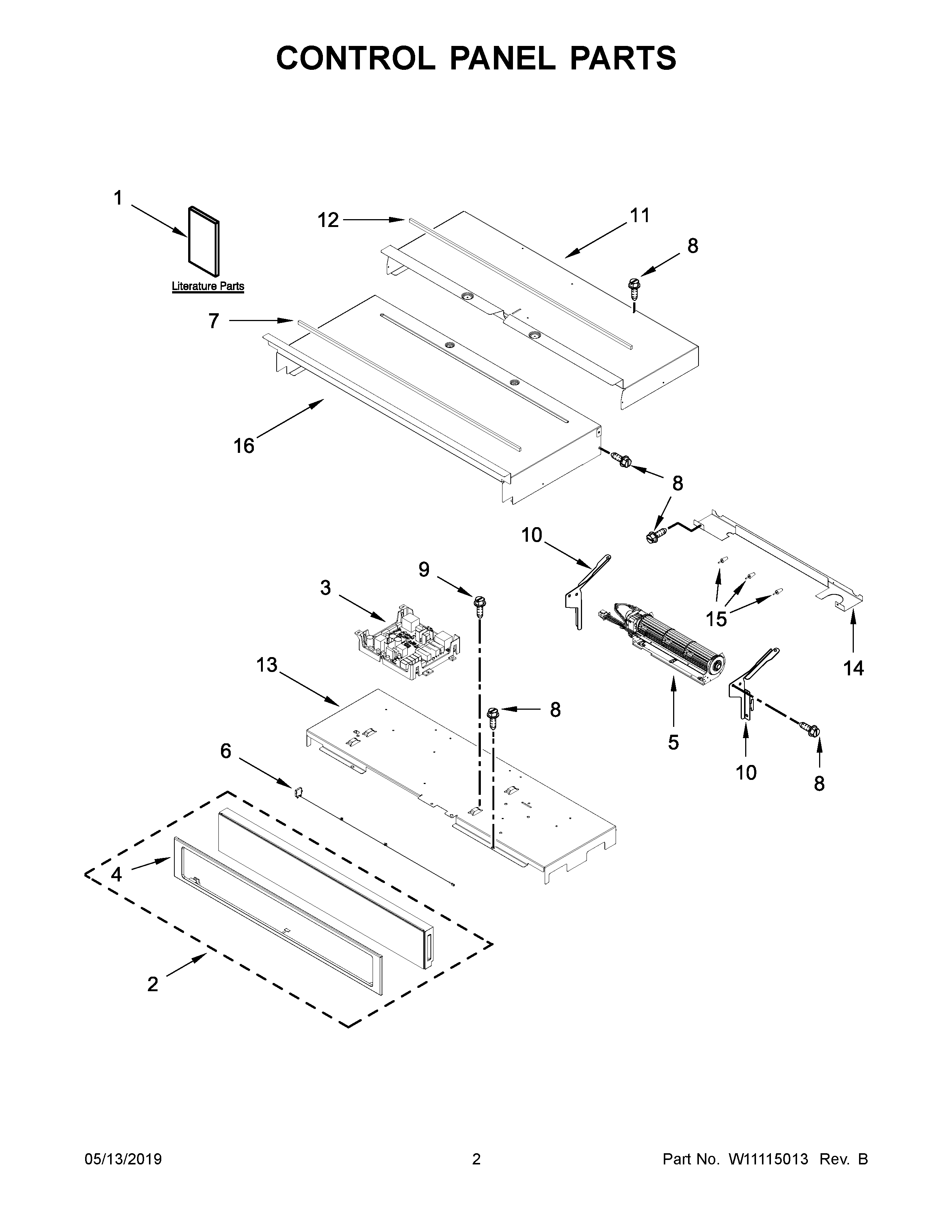

WOD77EC7HS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11177679 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11225371 Whirlpool Wire Harness
NI	WPW10339879 Whirlpool Wire Tie
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11233570 Whirlpool Wire Harness
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1D	DIAGRAM, WIRING
1B	GUIDE, INTERNET CONNECTIVITY
2A	W11428581 Whirlpool Console + Core
2B	W11428582 Whirlpool Console + Core
2	W11375459 Whirlpool Console + Core
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
3A	W11261164-includeCORE Whirlpool W11261164 Refrigerator Electronic Control Board + Core
4B	W11112612 Whirlpool Control Panel
4	W11115276 Whirlpool Skin Panel
4A	W11112611 Whirlpool Control Panel
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7	GASKET, RUBBER (652MM)
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	CHASSIS, COVER TOP BACK 27"
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
