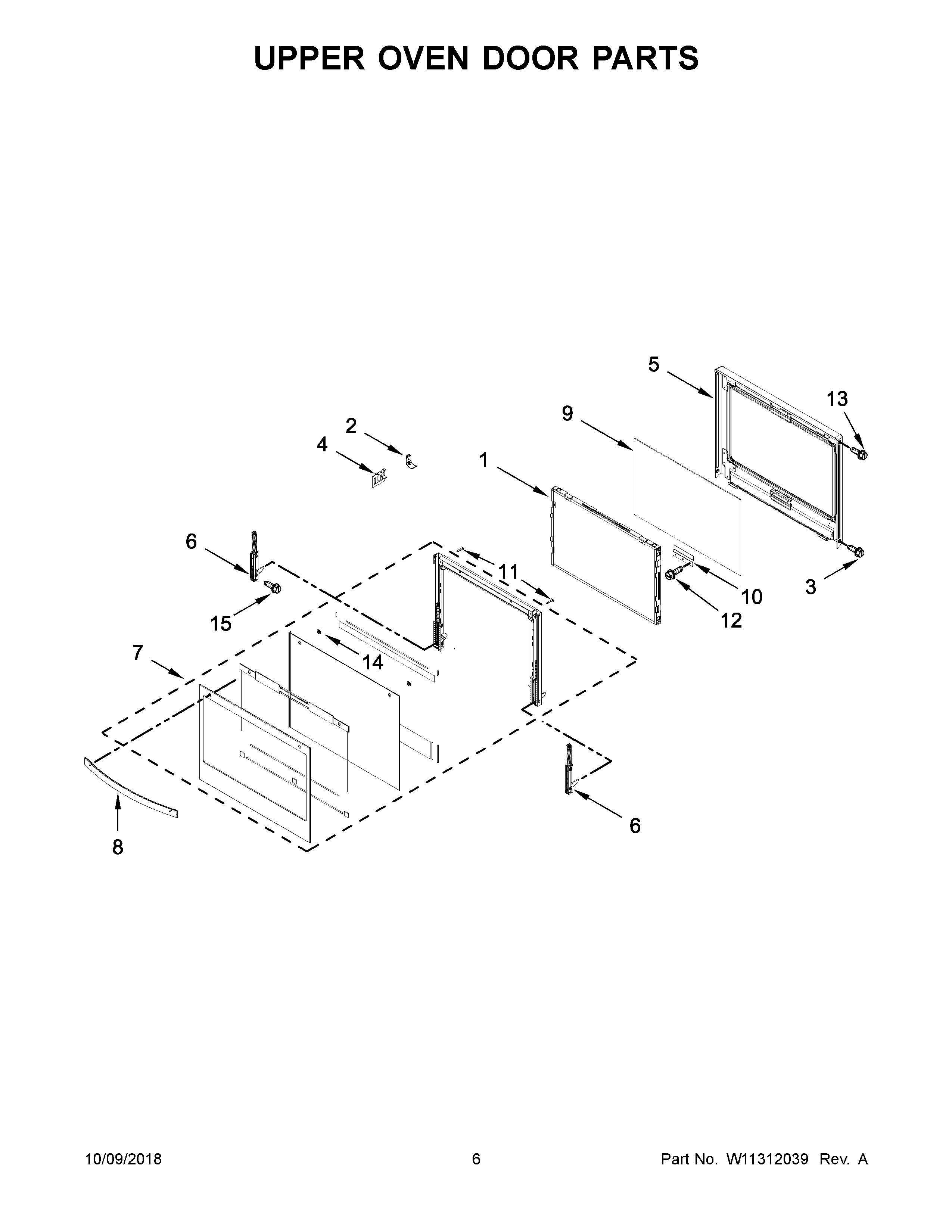

WOD77EC7HS01 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11025615 Whirlpool Glass Bracket
5	WPW10320793 Whirlpool Glass Frame
6	W11045550 Whirlpool Door Hinge
7	W11111694 Whirlpool Door Glass Assembly
7A	W11111696 Whirlpool Door Glass
8	W11113204 Whirlpool Door Handle
8A	HANDLE, DOOR (BLACK STAINLESS)
9	W10829001 Whirlpool Oven Wall Inner Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	W11676355 Whirlpool Washer
15	WP3196183 Whirlpool Screw
