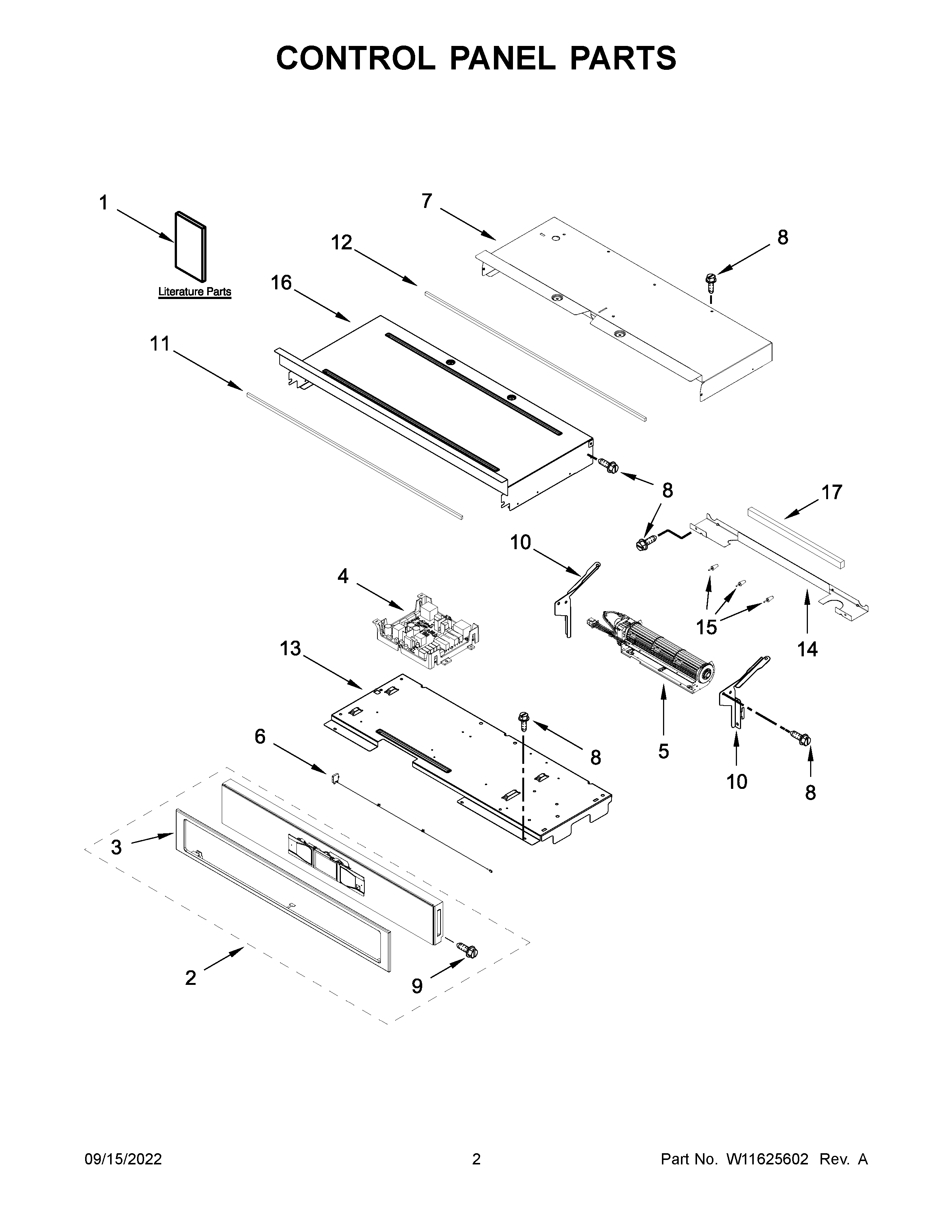

WOD77EC7HS20 02 – CONTROL PANEL PARTS

WOD77EC7HS20 02 – CONTROL PANEL PARTS

Written by

in

WOD77EC7HS20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NI4448664 Whirlpool Oven Mounting Bracket
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NIW11727826 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI16515 Whirlpool Clip
NIW11233570 Whirlpool Wire Harness
NIW11245677 Whirlpool Wire Harness
NIW11245672 Whirlpool Wire Harness
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11699910 Whirlpool Wire Harness
1AQUICK START GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2W11616682 Whirlpool Console + Core
2AASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK STAINLESS)
3AW11112612 Whirlpool Control Panel
3W11112611 Whirlpool Control Panel
4AW11261164-includeCORE Whirlpool W11261164 Refrigerator Electronic Control Board + Core
4W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
5BLOWER
6W11537624 Whirlpool Antenna Assembly
7COVER, TOP BACK 27 IN CHASSIS
8SCREW
9SCREW (BLACK)
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11GASKET, RUBBER (652MM)
12W10728475 Whirlpool Foam Seal
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15W10351295 Whirlpool Bumper Assembly
16COVER, TOP FRONT 27 IN CHASSIS
17W10491987 Whirlpool Foam Seal
