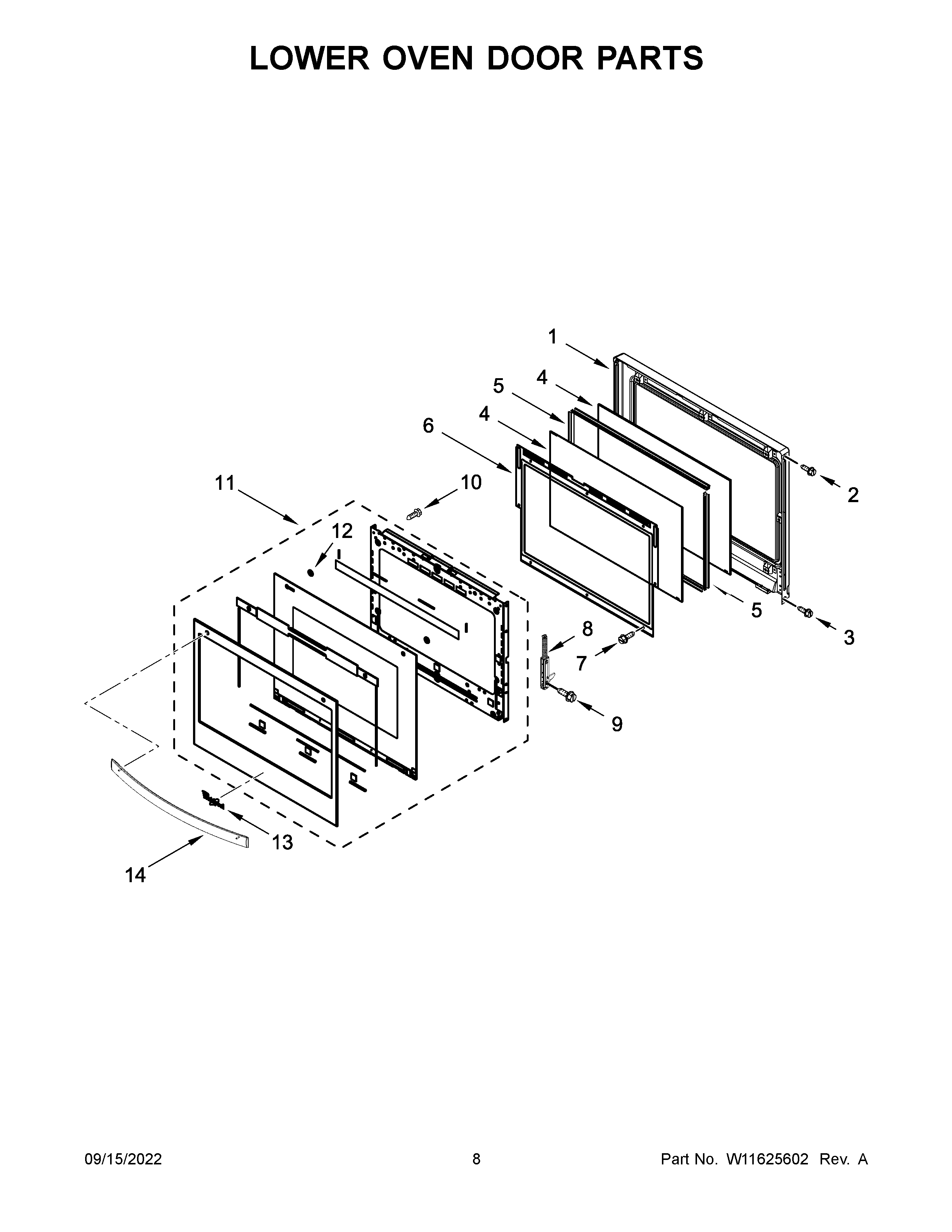

WOD77EC7HS20 05 – LOWER OVEN DOOR PARTS

WOD77EC7HS20 05 – LOWER OVEN DOOR PARTS

Written by

in

WOD77EC7HS20 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8HINGE, DOOR (LEFT)
8AHINGE, DOOR (RIGHT)
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600331 Whirlpool Oven Door Glass
11ADOOR ASSEMBLY (BLACK STAINLESS)
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14W11113204 Whirlpool Door Handle
14AHANDLE, DOOR (BLACK STAINLESS)
