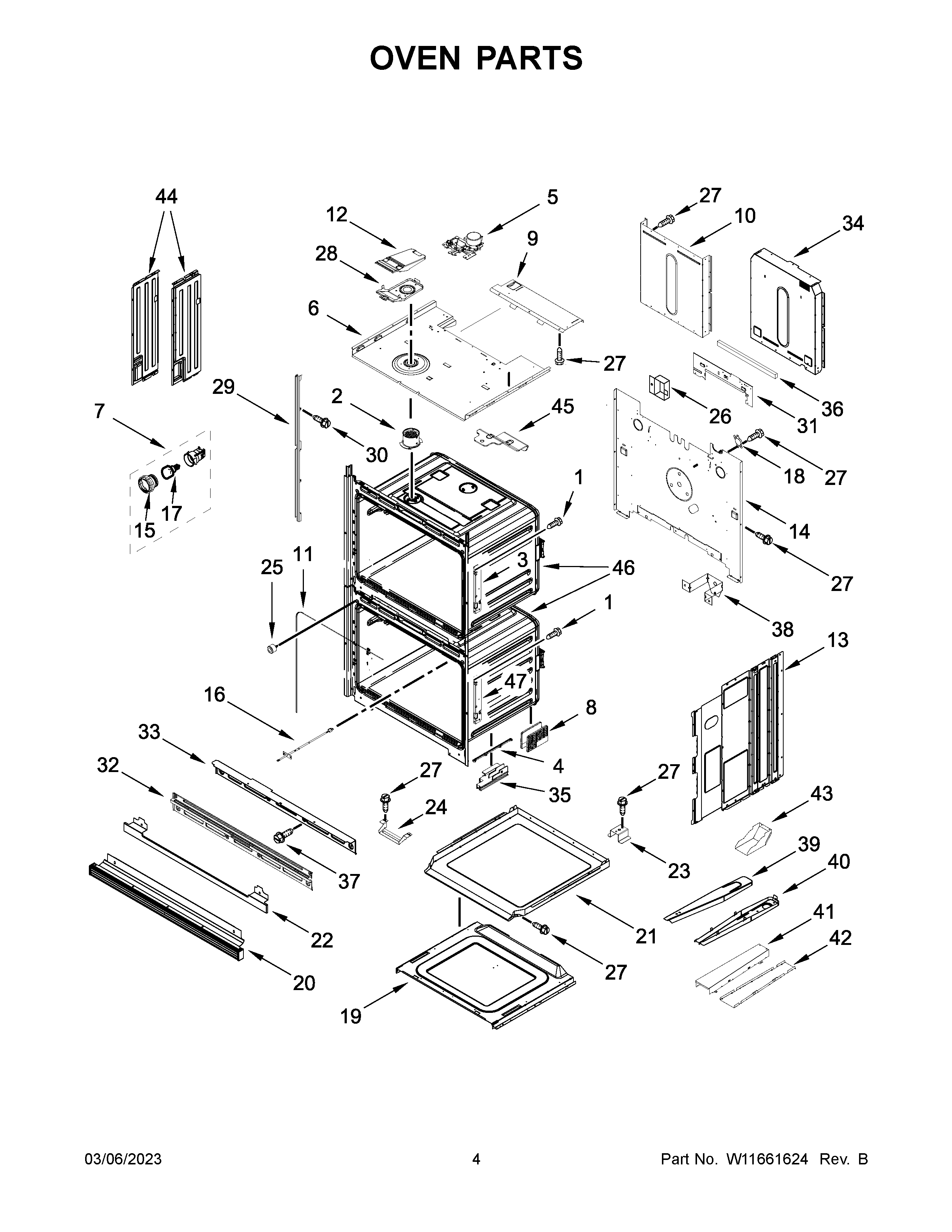

WOD77EC7HS21 03 – OVEN PARTS

WOD77EC7HS21 03 – OVEN PARTS

Written by

in

WOD77EC7HS21 03 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, BACK
NIINSULATION, WRAP
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3HINGE-RECV
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11325541 Whirlpool Indicator Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11134657 Whirlpool Rear Cover
11W11608109 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
15W11450856 Whirlpool Light Lens
16W11598120 Whirlpool Thermostat
17W11454079 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20W11598189 Whirlpool Vent
21COVR-ACESS
22W11712432 Whirlpool Trim Assembly
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
268285593 Whirlpool Oven Wire Cover
27SCREW
28BASE, VENT EXHAUST
29W11235460 Whirlpool Mounting Rail
29AW11235461 Whirlpool Rail Mounting
30W11602623 Whirlpool Screw
31BRACKET, U-SHAPE
32W11235483 Whirlpool Exhaust Vent
33W11334858 Whirlpool Vent Exhaust
34W11165250 Whirlpool Rear Cover
35AW11598168 Whirlpool Leveling Foot
35W11598169 Whirlpool Foot Level Assembly
36FOAM, U-BRACKET
37WPY706189 Whirlpool Stove Screw
38HAT BRACKET, VENT
39COVER, TOP BACK EXHAUST
40BASE, TOP BACK EXHAUST
41COVER, LOWER BACK EXHAUST
42BASE, LOWER BACK EXHAUST
43DEFLECTOR, LOWER BACK EXHAUST
44AW11598151 Whirlpool Side Cover
44W11598150 Whirlpool Side Cover
45BRACKET, TOP FRONT
47AW11712406 Whirlpool Receiver Hinge
47W11712405 Whirlpool Receiver Hinge
