WOD77EC7HV00 06 – INTERNAL OVEN PARTS

WOD77EC7HV00 06 – INTERNAL OVEN PARTS

Written by

in

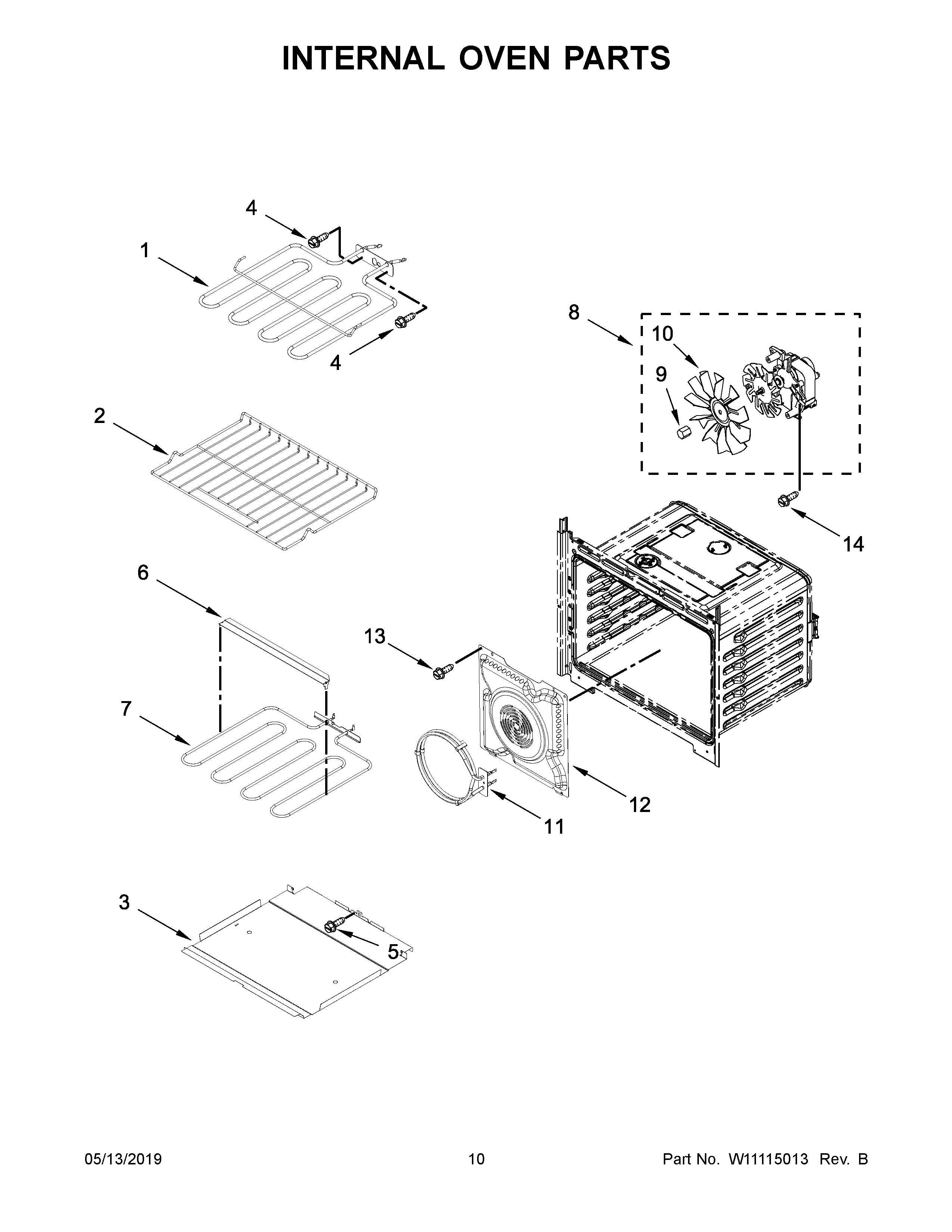

WOD77EC7HV00 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WPW10317431 Whirlpool Oven Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10860984 Whirlpool Fan Motor
9W10794042 Whirlpool Nut
10W10819914 Whirlpool Convection Fan
11WPW10260248 Whirlpool Element Assembly
12W10359278 Whirlpool Baffle Conv
13WP74003976 Whirlpool Screw
14W10850807 Whirlpool Screw
