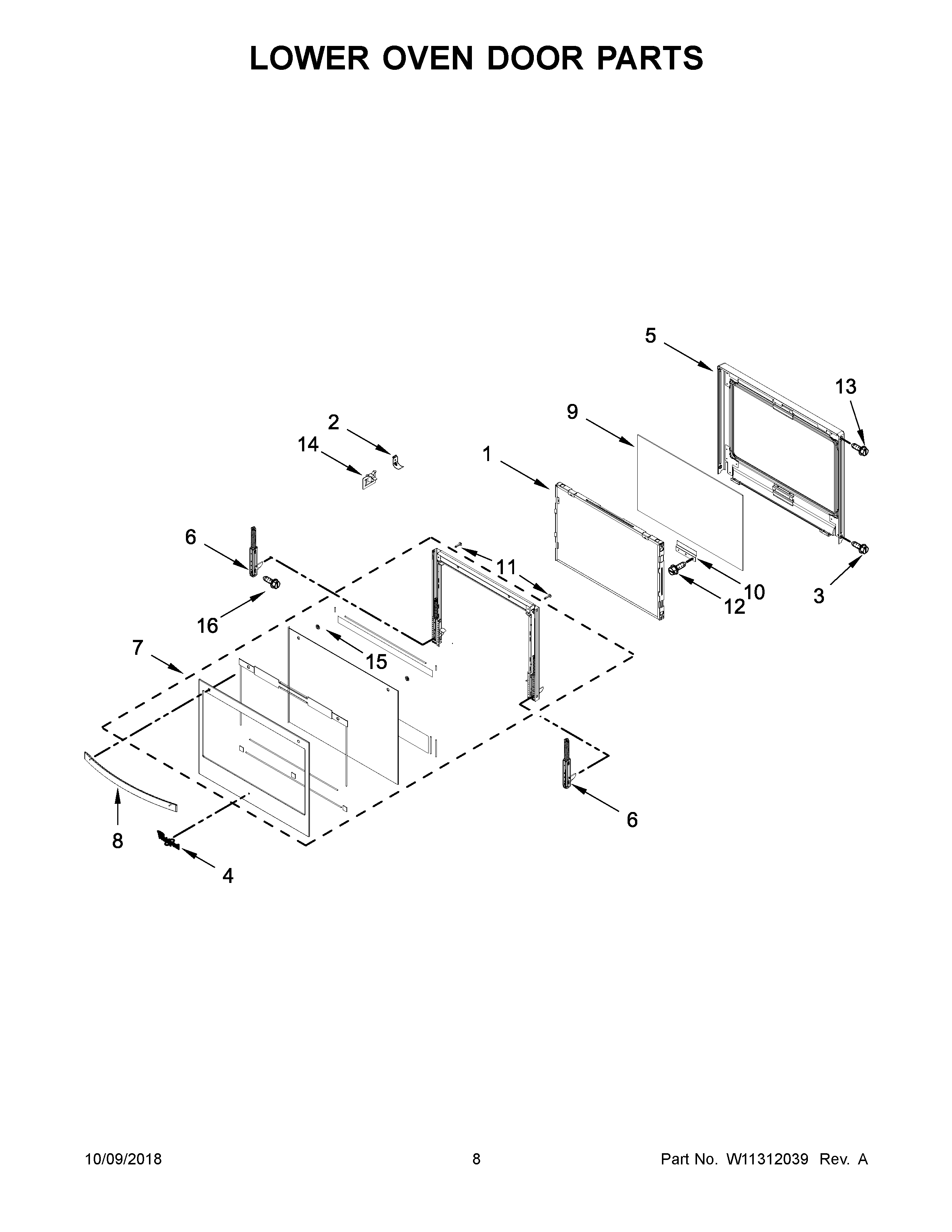

WOD77EC7HV01 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10320793 Whirlpool Glass Frame
6	W11045550 Whirlpool Door Hinge
7A	W11111696 Whirlpool Door Glass
7	W11111694 Whirlpool Door Glass Assembly
8	W11113204 Whirlpool Door Handle
8A	HANDLE, DOOR (BLACK STAINLESS)
9	W10829001 Whirlpool Oven Wall Inner Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	W11025615 Whirlpool Glass Bracket
15	W11676355 Whirlpool Washer
16	WP3196183 Whirlpool Screw
