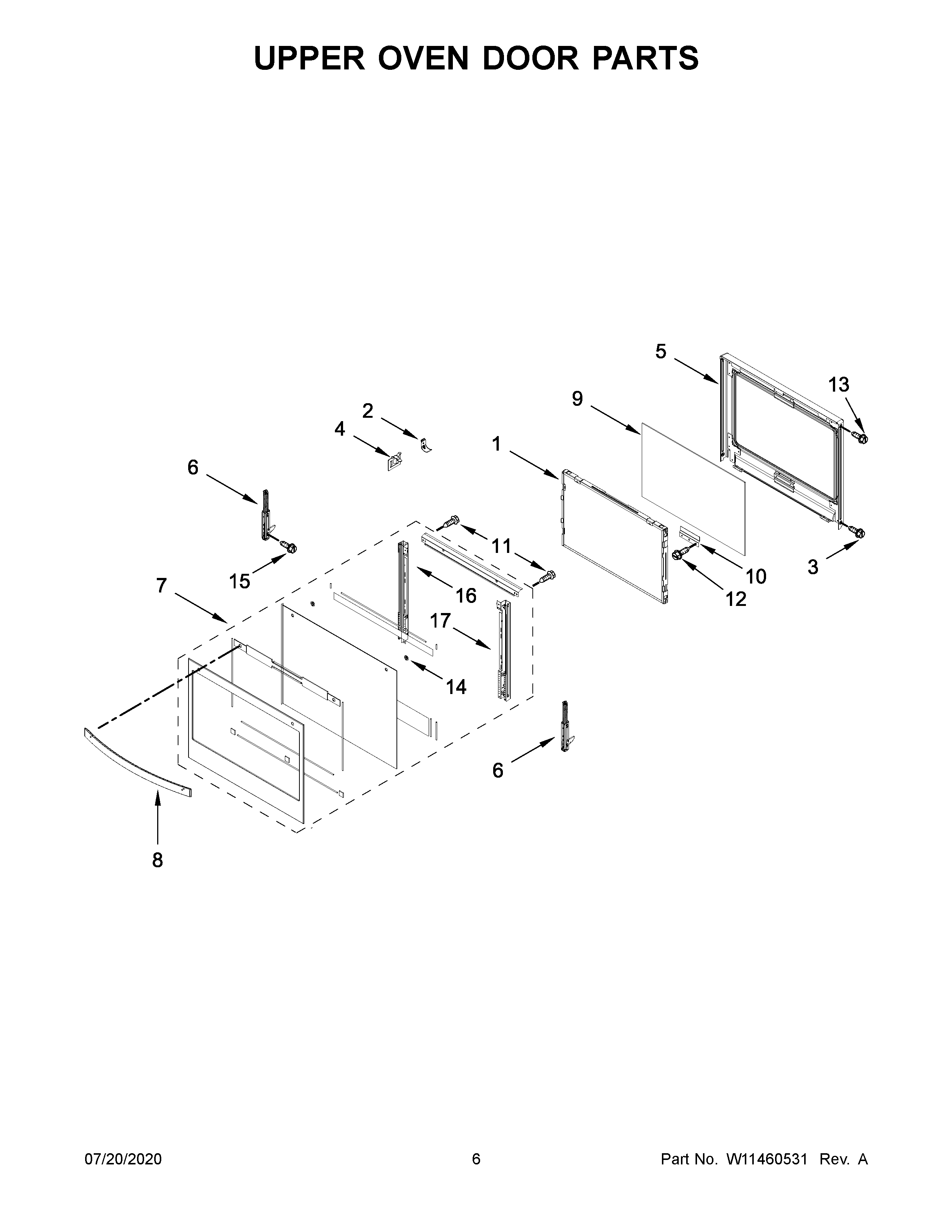

WOD77EC7HV02 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11458357 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11025615 Whirlpool Glass Bracket
5	WPW10320793 Whirlpool Glass Frame
6	W11411968 Whirlpool Door Hinge
7	W11457689 Whirlpool Door Glass
7A	W11460937 Whirlpool Door Glass
8A	HANDLE, DOOR (BLACK STAINLESS)
8	W11113204 Whirlpool Door Handle
9	W11458359 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	W11676355 Whirlpool Washer
15	WP3196183 Whirlpool Screw
16	W11355410 Whirlpool Support Bracket Assembly
17	W11355411 Whirlpool Support Bracket
