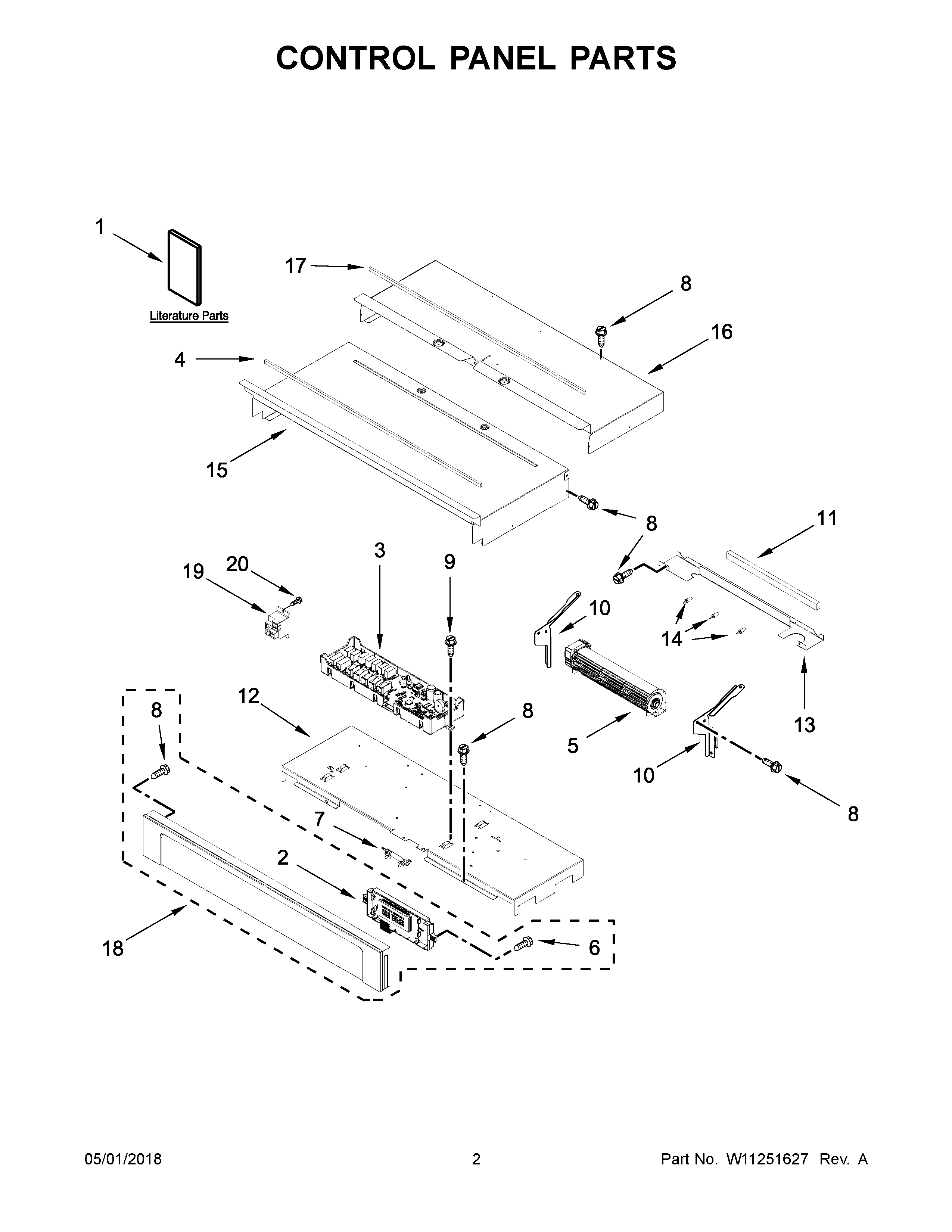

WOD93EC0AE06 02 – CONTROL PANEL PARTS

WOD93EC0AE06 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11132989 Whirlpool Wire Harness
NIW11136113 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NI16515 Whirlpool Clip
NIW11177679 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NIW11157775 Whirlpool Wire Harness
NIHARNESS, SIGNAL
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3W11032469 Whirlpool Electronic Control Board
4GASKET, RUBBER
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10347650 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14W10351295 Whirlpool Bumper Assembly
15W10318192 Whirlpool Cabinet Top
16W10904156 Whirlpool Cabinet Top
17W10728475 Whirlpool Foam Seal
18W10864163 Whirlpool Control Panel
18AW10864166 Whirlpool Control Panel
18BW10812344 Whirlpool Control Panel
19W10874478 Whirlpool Power Relay
20SCREW
