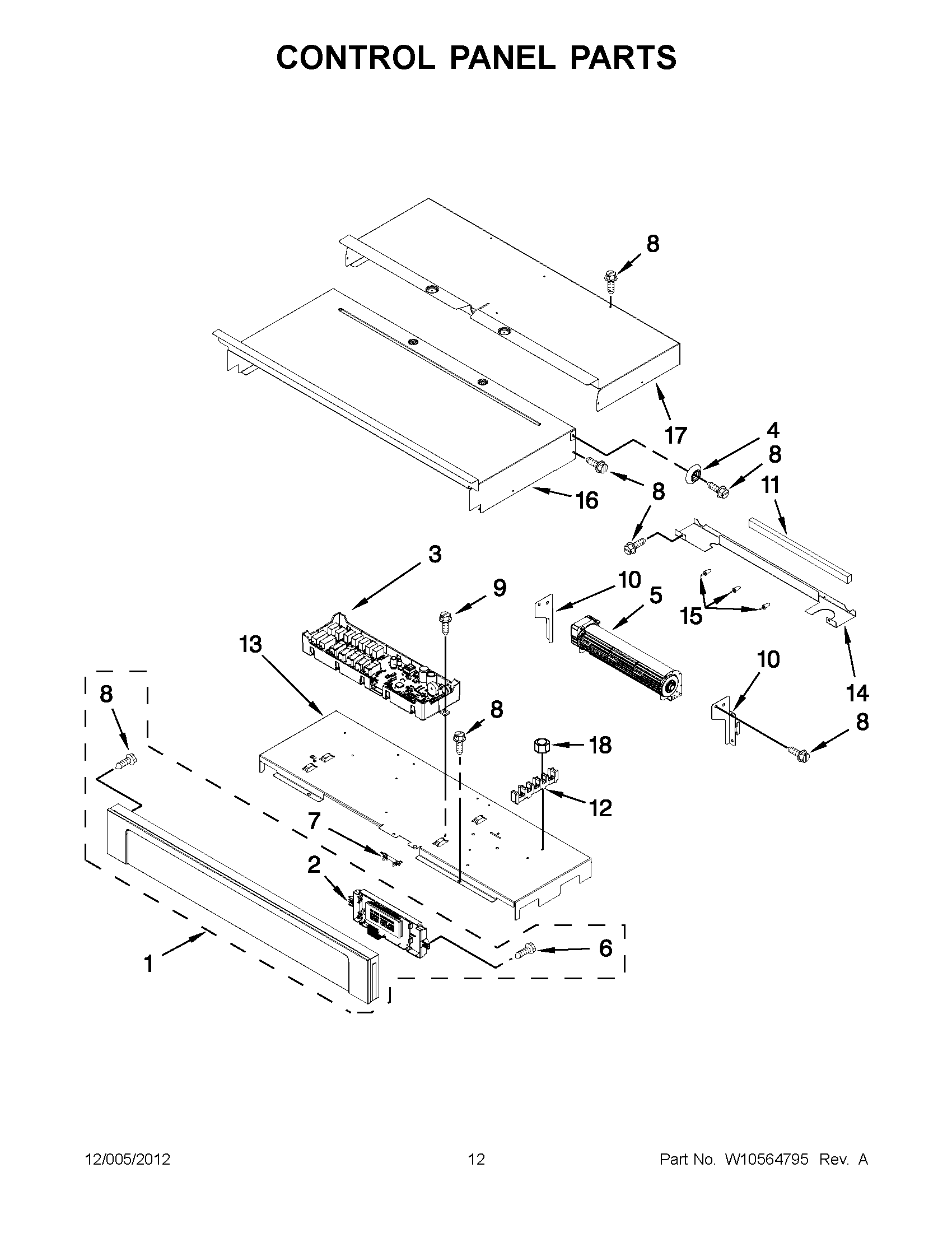

WOD93EC0AH01 06 – CONTROL PANEL PARTS

WOD93EC0AH01 06 – CONTROL PANEL PARTS

Products

PositionProduct
1W10861730 Whirlpool Control Panel
1W10861654 Whirlpool Control Panel
1W10861729 Whirlpool Control Panel
1W10849197 Whirlpool Control Panel
1W10540040 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3W10838959-includeCORE Whirlpool W10838959 Washer Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5BLOWER (LOWER)
5WPW10260254 Whirlpool Blower
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10W10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10347650 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18Nut
