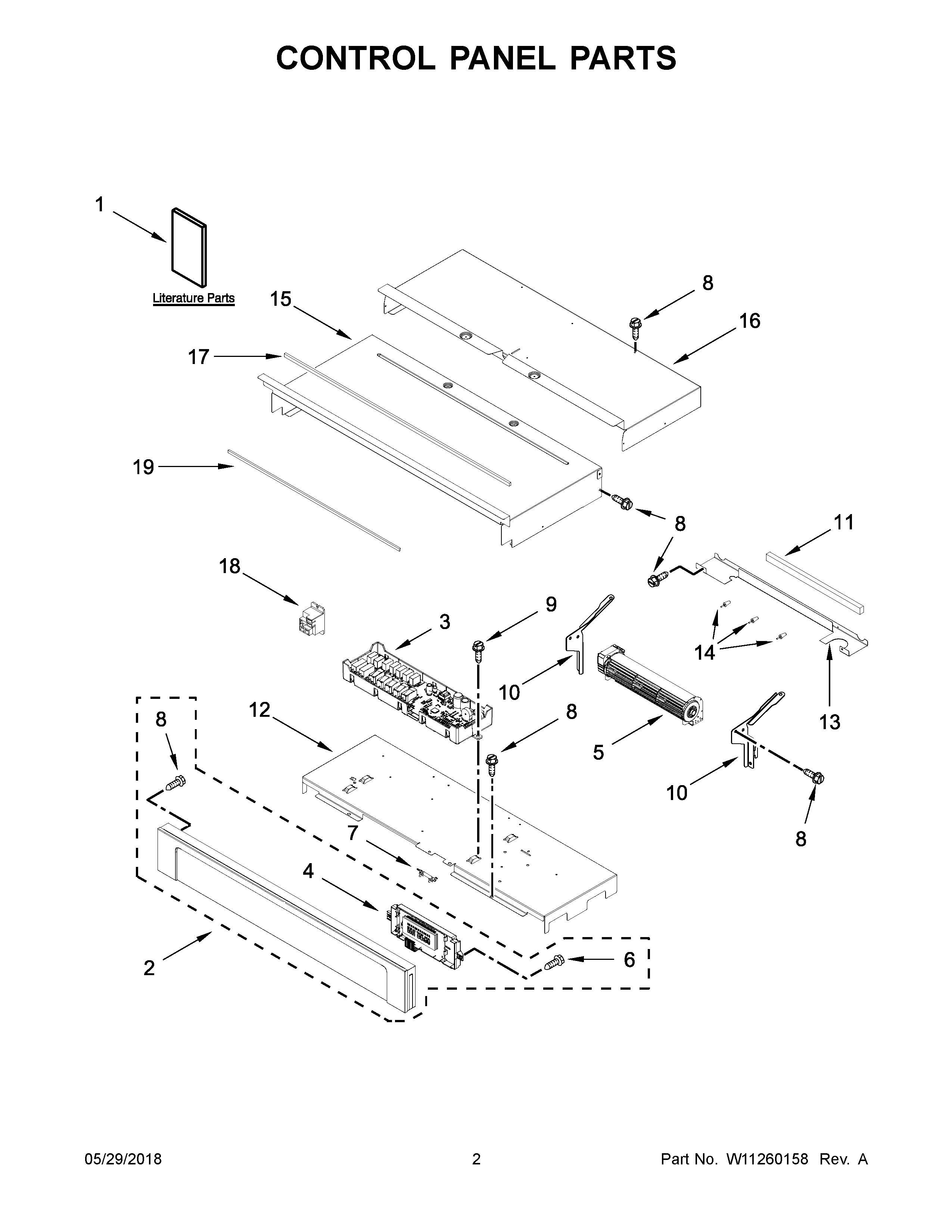

WOD93EC7AB06 02 – CONTROL PANEL PARTS

WOD93EC7AB06 02 – CONTROL PANEL PARTS

Products

PositionProduct
NI16515 Whirlpool Clip
NIHARNESS, SIGNAL
NISTRAP, LEAD GROUND
NIW10655464 Whirlpool Bracket
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW10760039 Whirlpool Hardware
NIW11177679 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NIW11136113 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
1BSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
2W10864171 Whirlpool Control Panel
2AW10864173 Whirlpool Control Panel
3W11032469 Whirlpool Electronic Control Board
4WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10283005 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14W10351295 Whirlpool Bumper Assembly
15W10318193 Whirlpool Cabinet Top
16CHASSIS, COVER TOP BACK 27"
17W10728475 Whirlpool Foam Seal
18W10874478 Whirlpool Power Relay
19GASKET, RUBBER (652MM)
19AGASKET, RUBBER
