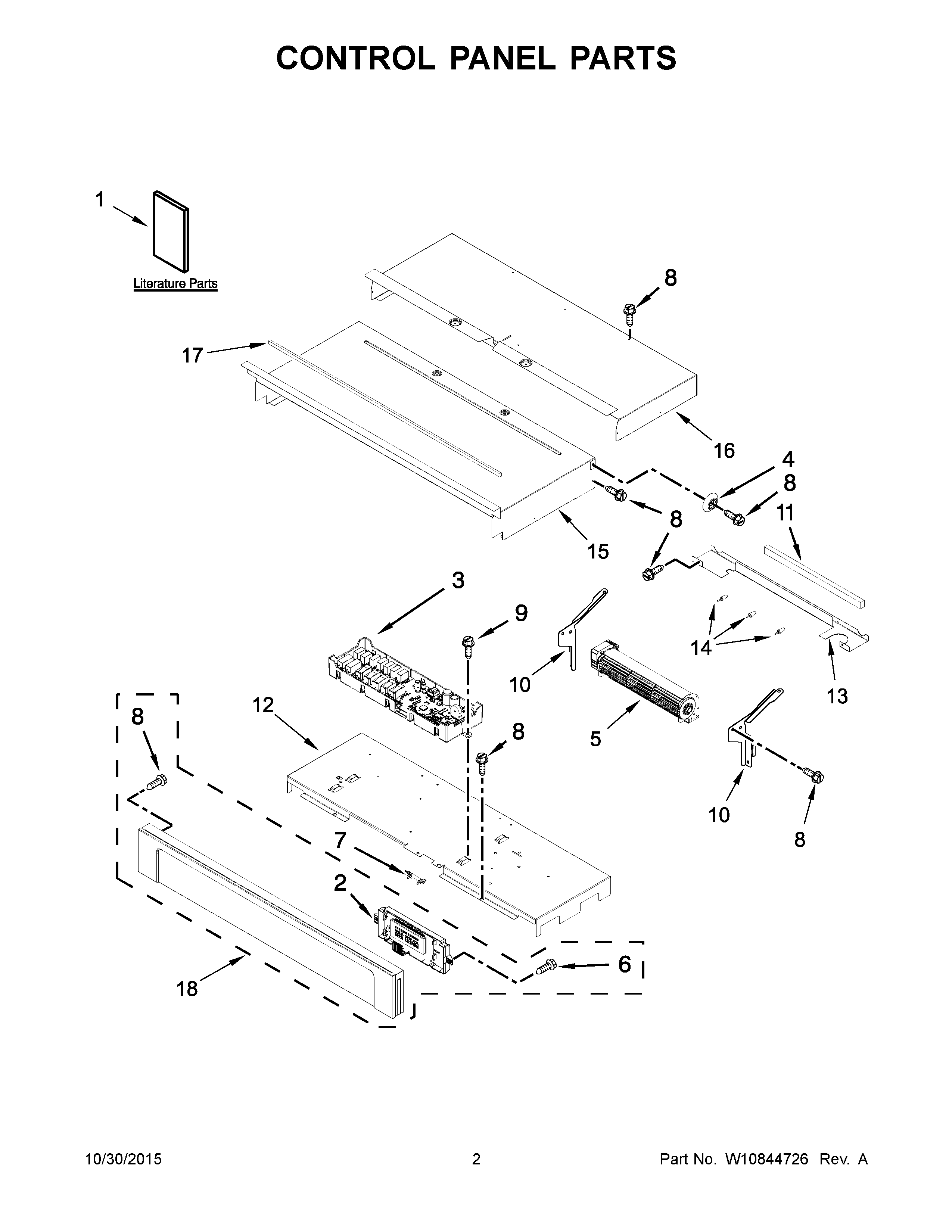

WOD93EC7AS04 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10864173 Whirlpool Control Panel
NI	W10284931 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W10679413 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W10774727 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1B	SHEET, TECH
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W10841979-includeCORE Whirlpool W10841979 Refrigerator Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5A	WPW10641253 Whirlpool Blower Motor
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10283005 Whirlpool Mounting Bracket
13	W10655465 Whirlpool Mounting Bracket
14	W10351295 Whirlpool Bumper Assembly
15	W10318193 Whirlpool Cabinet Top
16	CHASSIS, COVER TOP BACK 27"
17	W10728475 Whirlpool Foam Seal
18	W10864171 Whirlpool Control Panel
