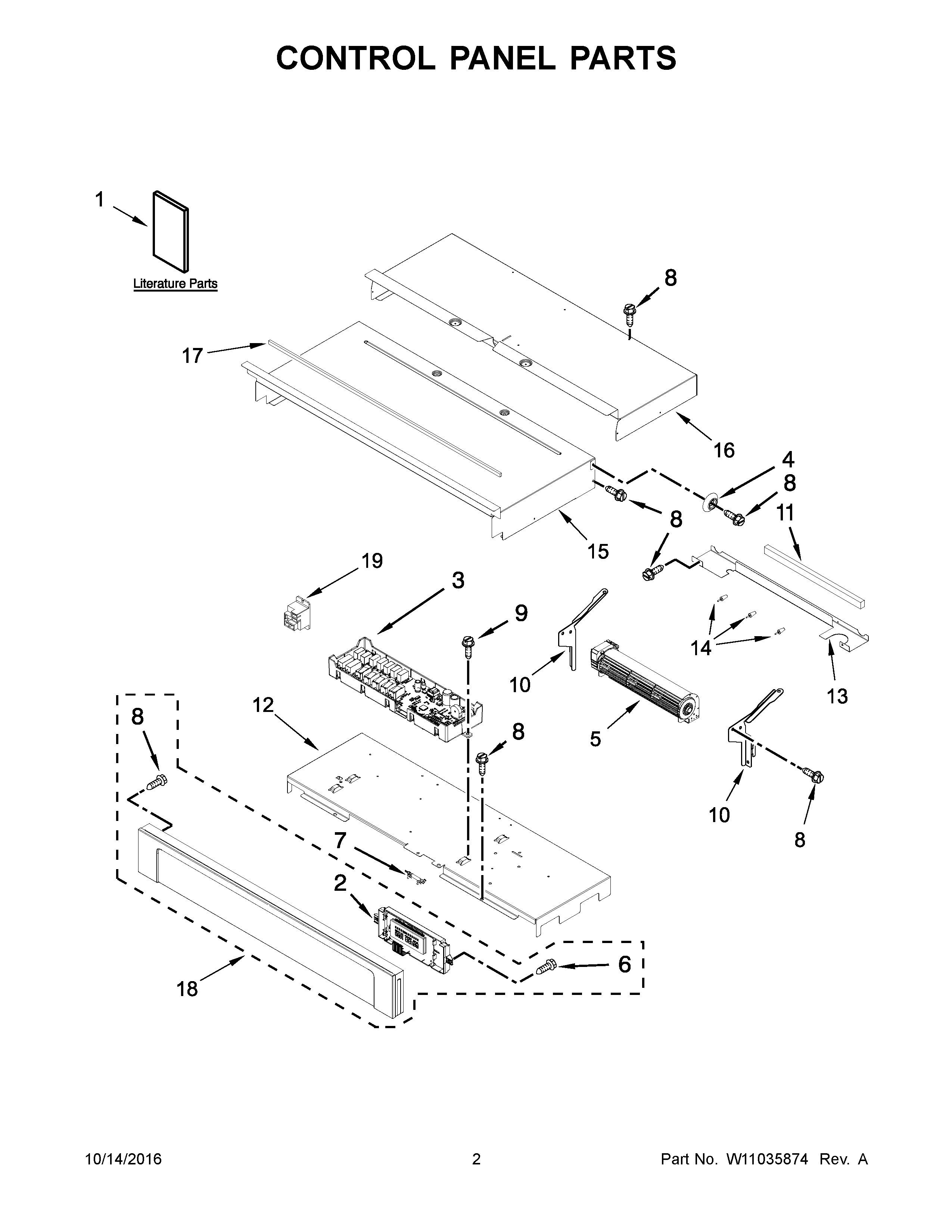

WOD93EC7AS05 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	WPW10657548 Whirlpool Foam Seal
NI	W11157775 Whirlpool Wire Harness
NI	W11177679 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W10284931 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11132989 Whirlpool Wire Harness
NI	W11136113 Whirlpool Wire Harness
1	GUIDE, USE & CARE
1B	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W11032469 Whirlpool Electronic Control Board
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10283005 Whirlpool Mounting Bracket
13	W10655465 Whirlpool Mounting Bracket
14	W10351295 Whirlpool Bumper Assembly
15	W10318193 Whirlpool Cabinet Top
16	CHASSIS, COVER TOP BACK 27"
17	W10728475 Whirlpool Foam Seal
18	W10864171 Whirlpool Control Panel
18A	W10864173 Whirlpool Control Panel
19	W10874478 Whirlpool Power Relay
