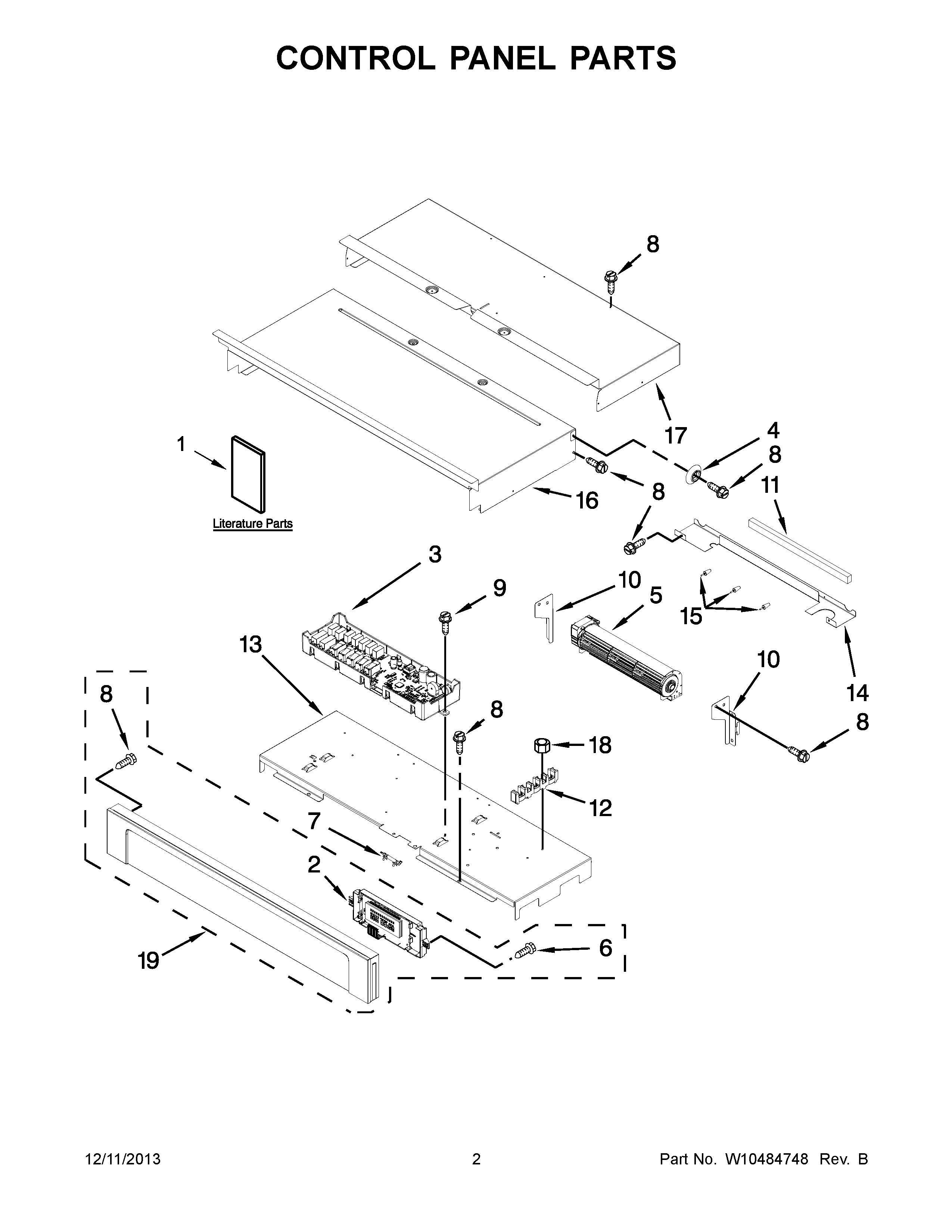

WOD93EC7AW00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	W10760039 Whirlpool Hardware
1	TECH SHEET (ENGLISH)
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	W10550511 Whirlpool Blower Assembly
4	W10363824 Whirlpool Spacer
5	BLOWER (LOWER)
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	BRACKET, BLOWER LEFT
10	W10283078 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	W10283005 Whirlpool Mounting Bracket
14	W10509164 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
17	W10318195 Whirlpool Cabinet Top
18	Nut
19	W10861731 Whirlpool Control Panel
19	W10861733 Whirlpool Control Panel
19	W10363820 Whirlpool Control Panel
