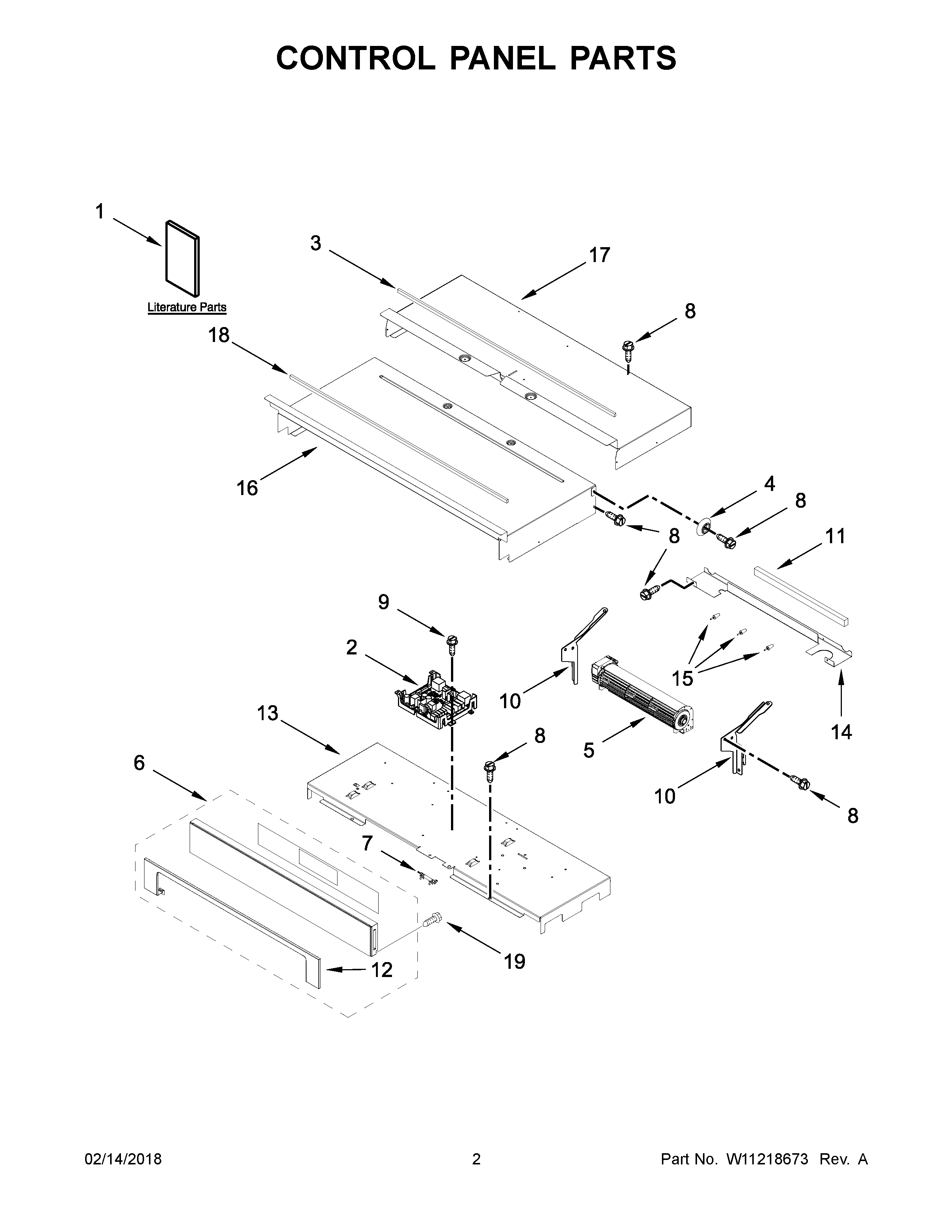

WOD97ES0ES03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11177679 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11157221 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1A	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1	GUIDE, USE & CARE
2A	W10801665-includeCORE Whirlpool W10801665 Refrigerator Electronic Control Board
2	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
3	W10728475 Whirlpool Foam Seal
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
7	W11204568 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	SKIN, CONTROL PANEL (STAINLESS)
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
18	GASKET, RUBBER
19	SCREW
