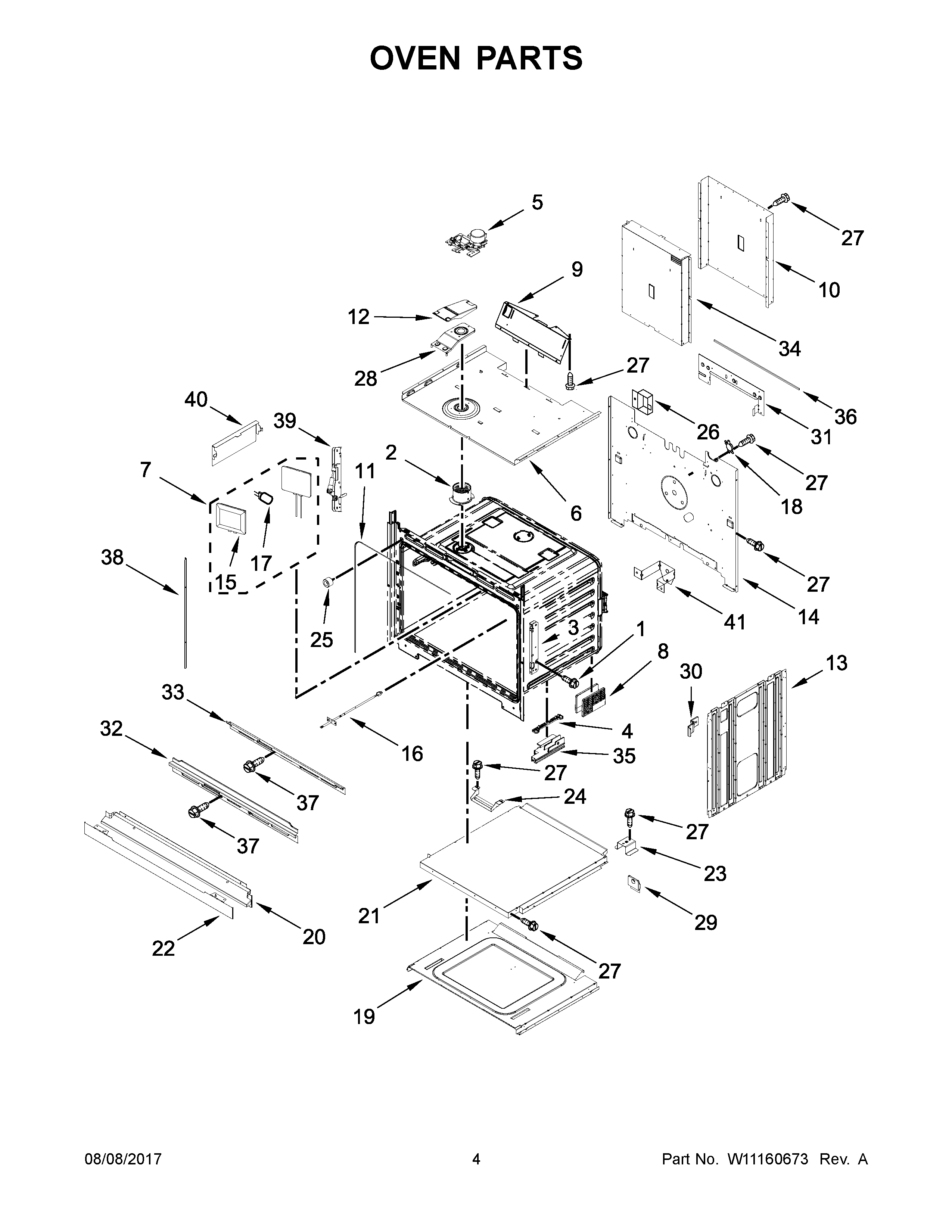

WODA7EC0HN00 03 – OVEN PARTS

Products

Position	Product
NI	W11684789 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11685004 Whirlpool Insulation
NI	W11688731 Whirlpool Insulation
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	ASSEMBLY, OVEN LIGHT
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	DUCT, CHASSIS BACK (LOWER)
11	GASKET
12	W10616810 Whirlpool Exhaust Cover
13	PANEL-SIDE
13A	SIDE, CHASSIS
14	BACK, CHASSIS
15	WPW10519866 Whirlpool Light
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	BULB-LIGHT
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	W10869571 Whirlpool Oven Vent
20A	ASSEMBLY, BOTTOM VENT (SUNSET BRONZE)
21	WPW10283008 Whirlpool Access Cover
22	WPW10327377 Whirlpool Trim Kit
22A	TRIM, BOTTOM VENT (SUNSET BRONZE)
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	SPACER, CENTER
30	SPACERS, FRONT
31	BRACKET, U-SHAPE
32	VENT, CENTER 30``
33	VENT, TOP 30``
34	W10318196 Whirlpool BA Chassis
35	W10848812 Whirlpool Level Foot
36	W10728475 Whirlpool Foam Seal
37	W11193480 Whirlpool Screw
38A	W10536161 Whirlpool Oven Trim Cover Kit
39	W11045086 Whirlpool Hinge Receptacle
40	SHIELD, SLOW CLOSE HINGE
41	HAT BRACKET, VENT
