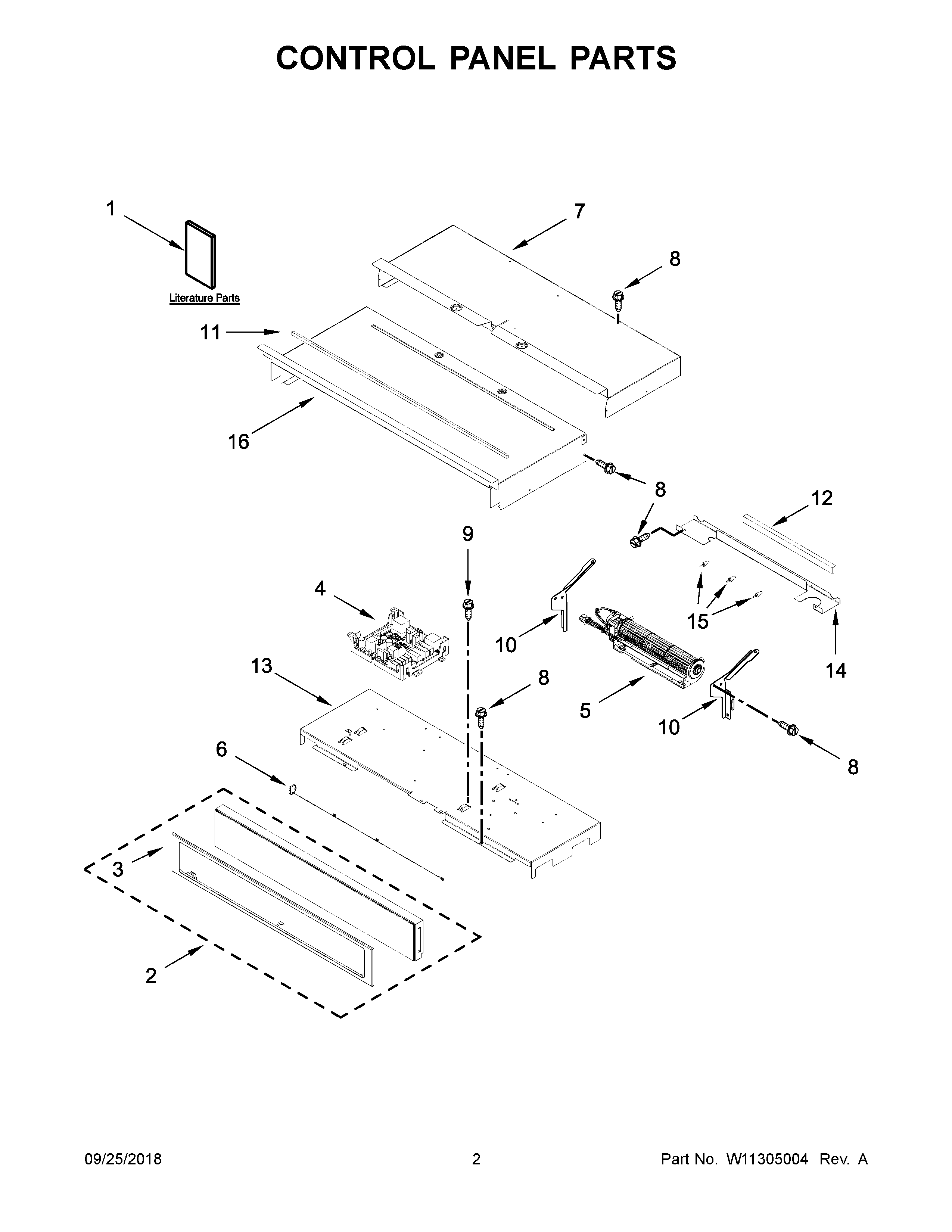

WODA7EC0HN01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11177679 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11132989 Whirlpool Wire Harness
NI	WPW10339879 Whirlpool Wire Tie
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11225377 Whirlpool Wire Harness
1D	DIAGRAM, WIRING
1B	GUIDE, INTERNET CONNECTIVITY
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
2	W11428590 Whirlpool Console + Core
2A	W11428591 Whirlpool Console + Core
3	W11156404 Whirlpool Skin Panel
3A	W11162715 Whirlpool Skin Panel
4	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4A	W11261164-includeCORE Whirlpool W11261164 Refrigerator Electronic Control Board + Core
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7	W10904156 Whirlpool Cabinet Top
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	GASKET, RUBBER
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
