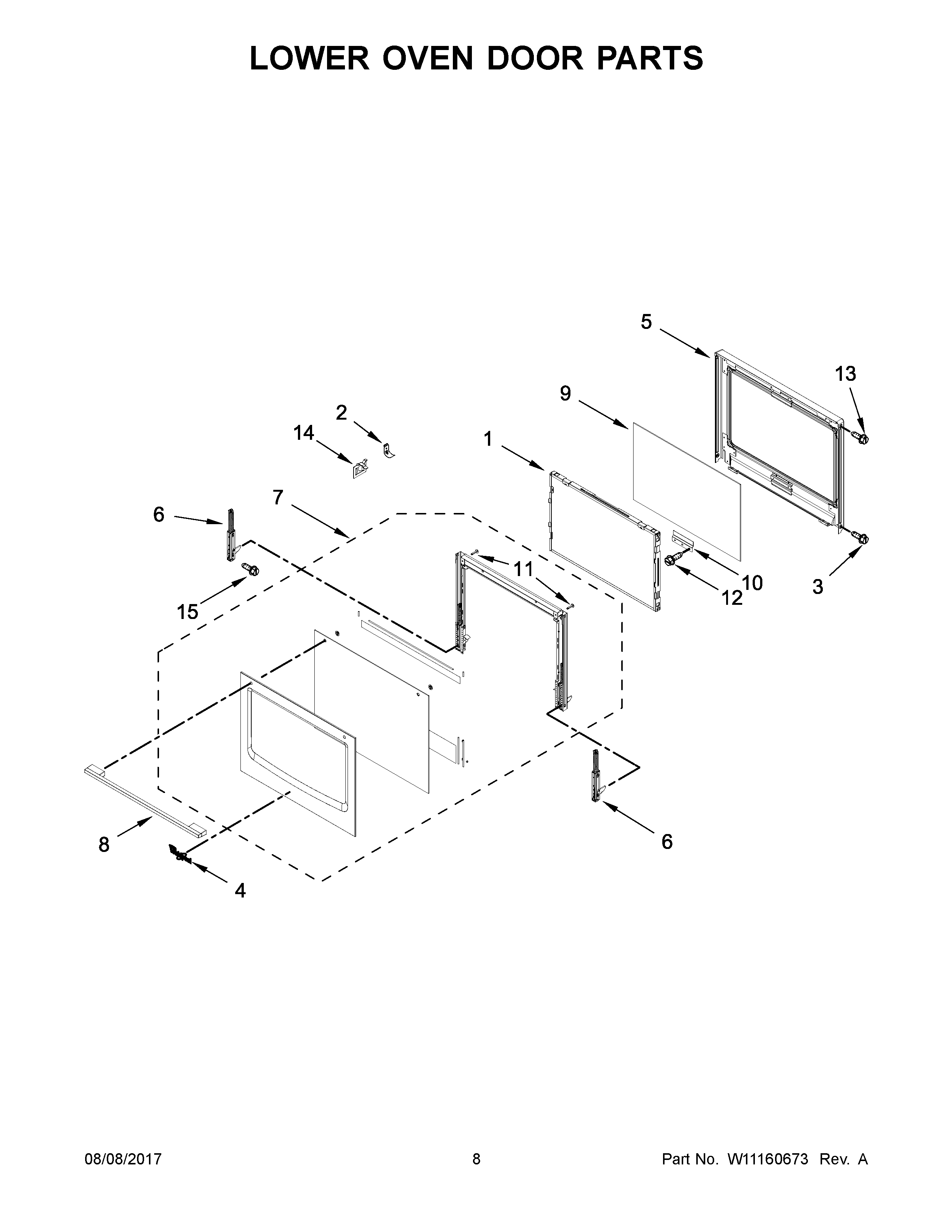

WODA7EC0HZ00 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347596 Whirlpool Stove Middle Door Glass Panel
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10709147 Whirlpool Glass Frame
6	W11045551 Whirlpool Door Hinge
7A	ASSEMBLY, DOOR GLASS (SUNSET BRONZE)
7	ASSEMBLY, DOOR (STAINLESS)
8	W11248076 Whirlpool Door Handle
9	WPW10618107 Whirlpool Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	W11025615 Whirlpool Glass Bracket
15	WP3196183 Whirlpool Screw
