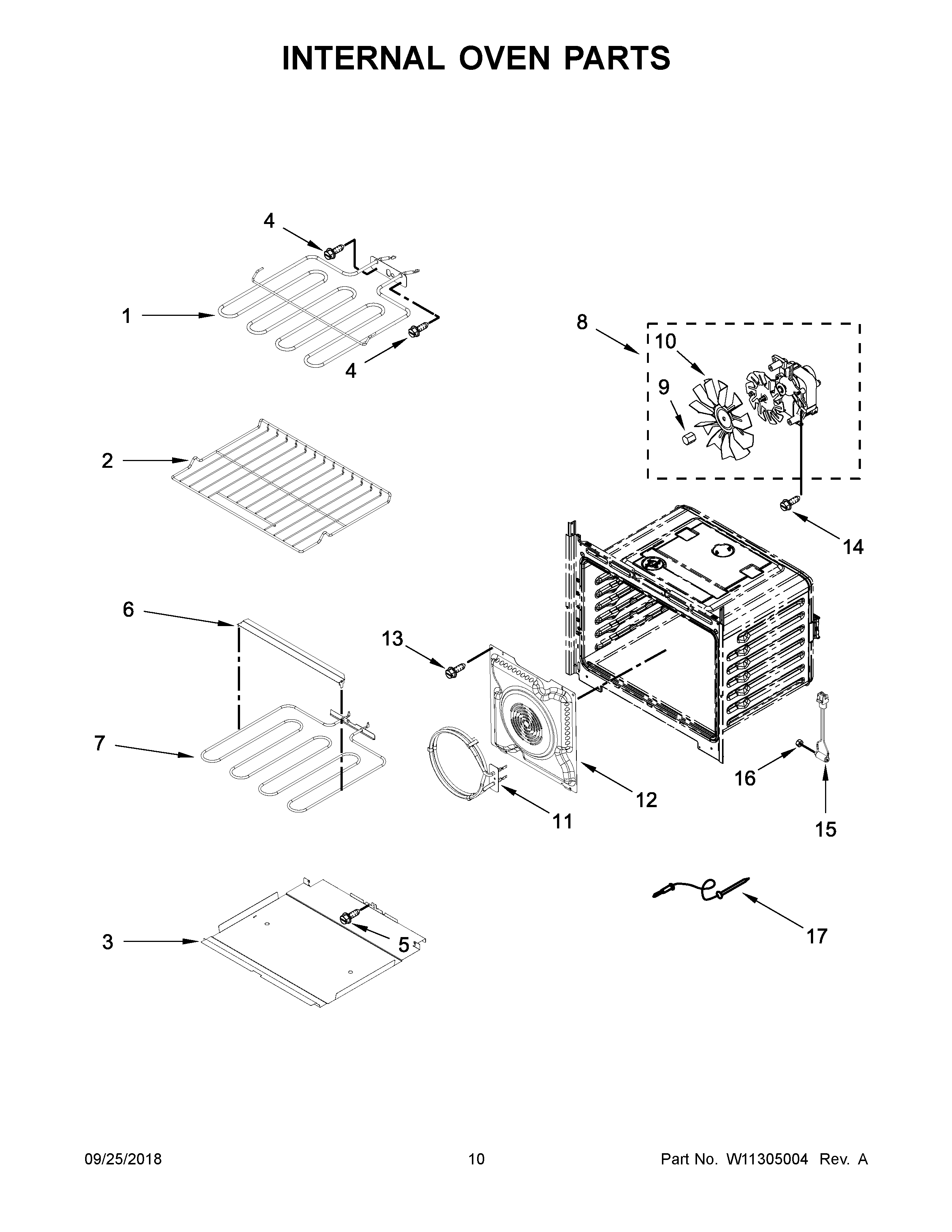

WODA7EC0HZ01 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	W11218798 Whirlpool Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10860984 Whirlpool Fan Motor
9	W10794042 Whirlpool Nut
10	W10819914 Whirlpool Convection Fan
11	WPW10260248 Whirlpool Element Assembly
12	BAFFLE, CONVECTION
13	WP74003976 Whirlpool Screw
14	W10850807 Whirlpool Screw
15	W11220388 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	WP9755542 Whirlpool Oven Meat Probe
