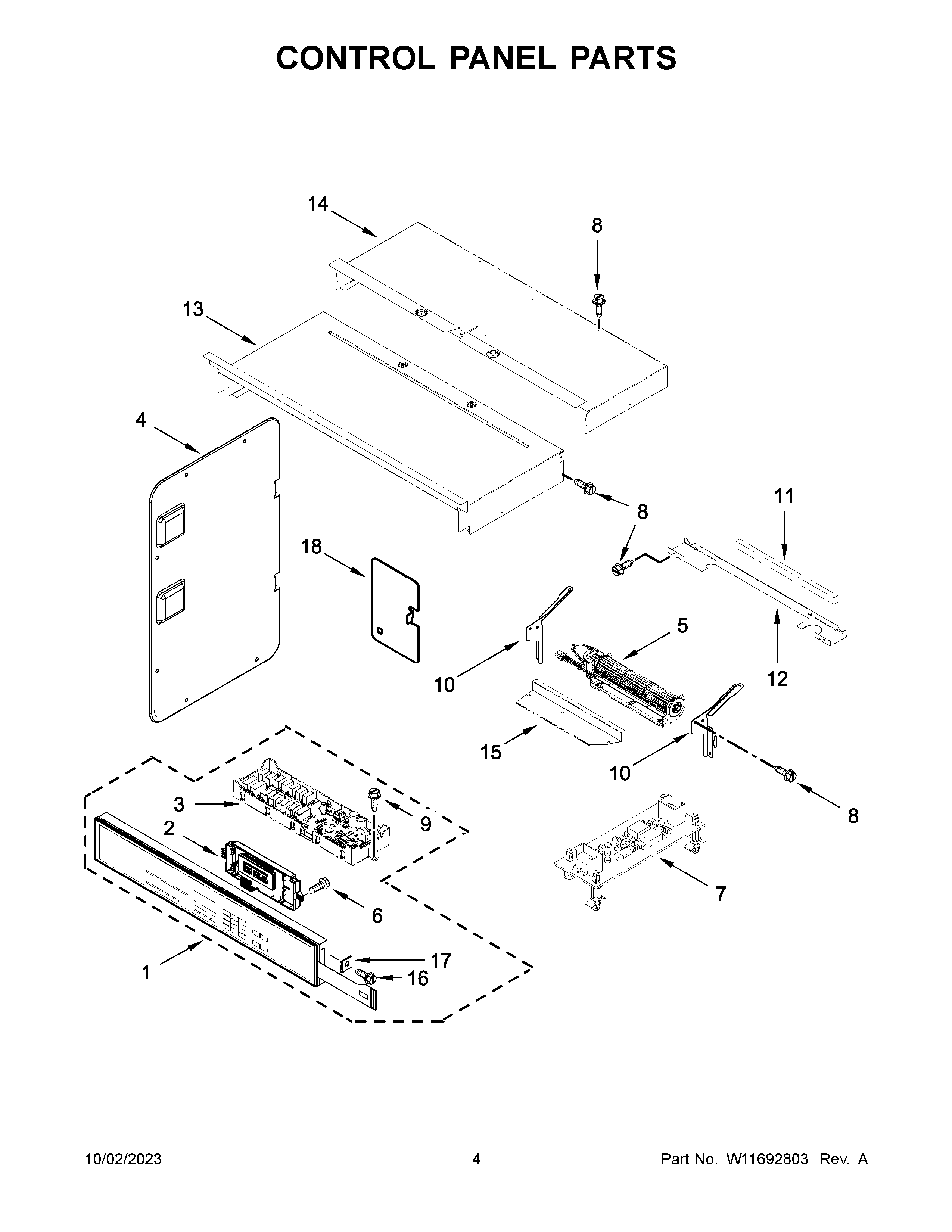

WOEC3030LS01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11659260-includeCORE Whirlpool Console+Core
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W11649138-includeCORE Whirlpool W11649138 Refrigerator Electronic Control Board + Core
4	W10655467 Whirlpool Side Cover
5	BLOWER
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	DIVIDER, CHASSIS BACK
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
15	W10681157 Whirlpool Fan Cover
16	SCREW (BLACK)
17	WP4450118 Whirlpool Nut
18	COVER, WIFI
