WOEC5027LW00 05 – INTERNAL OVEN PARTS – Aparts

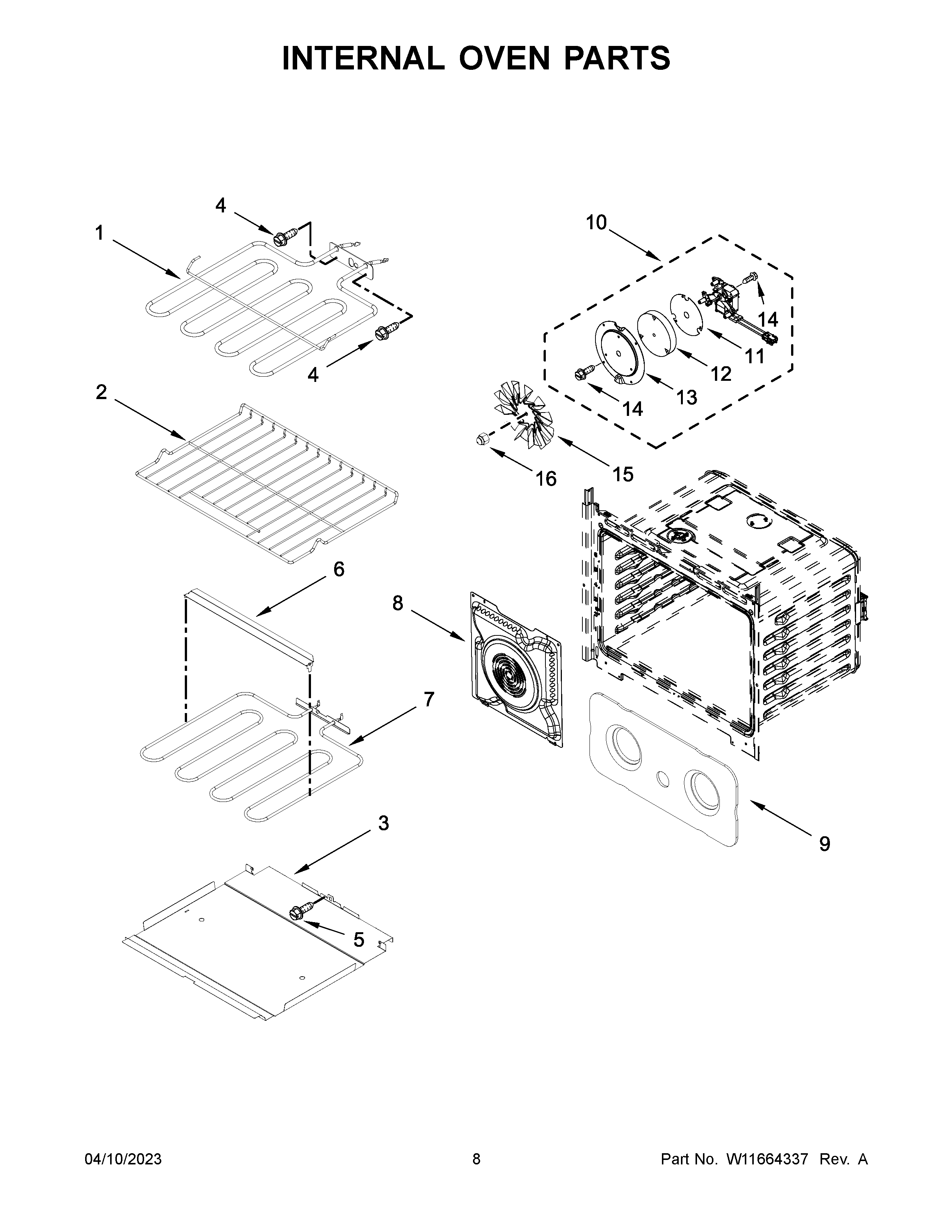

WOEC5027LW00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11617232 Whirlpool Broil Element
2	WPW10317431 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10359278 Whirlpool Baffle Conv
9	PLATE, RING ELEMENT
10	W11617227 Whirlpool Fan Motor
11	PLATE, CONVECT MOTOR
12	INSULATION, CONVECT MOTOR
13	COVER, CONVECT PLATE
14	W10850807 Whirlpool Screw
15	W11548753 Whirlpool Convection Fan
16	W11548755 Whirlpool Nut
