WOEC5027LW00 08 – TOP VENTING PARTS – Aparts

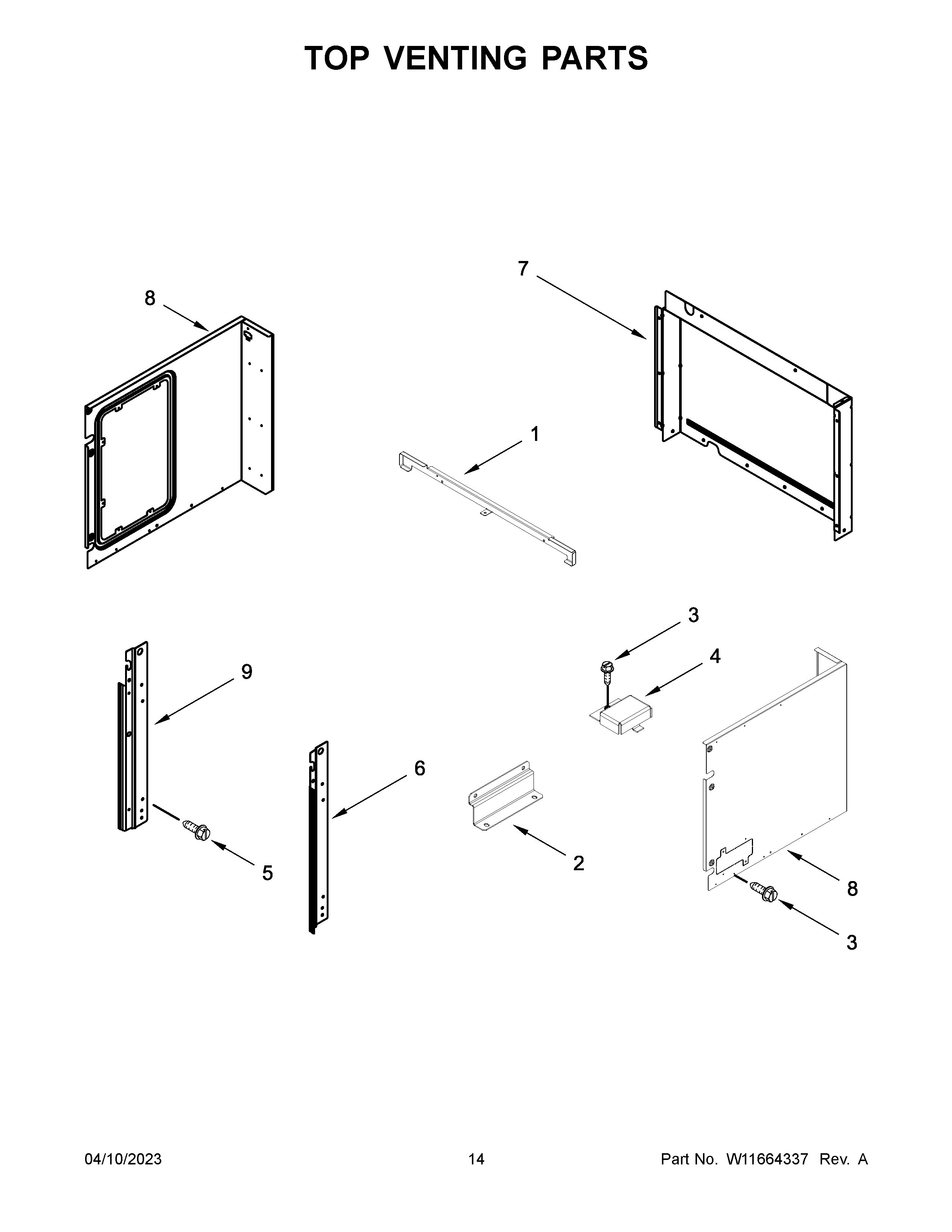

WOEC5027LW00 08 – TOP VENTING PARTS

Products

Position	Product
1	W10283023 Whirlpool Support
2	SIDE, BRACKET
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	SCREW (BLACK)
6	W11627411 Whirlpool Mounting Rail
7	COVER-REAR
8	SIDE, COMBO CHASSIS (LEFT)
8A	SIDE, COMBO CHASSIS (RIGHT)
9	W11627410 Whirlpool Mounting Rail
