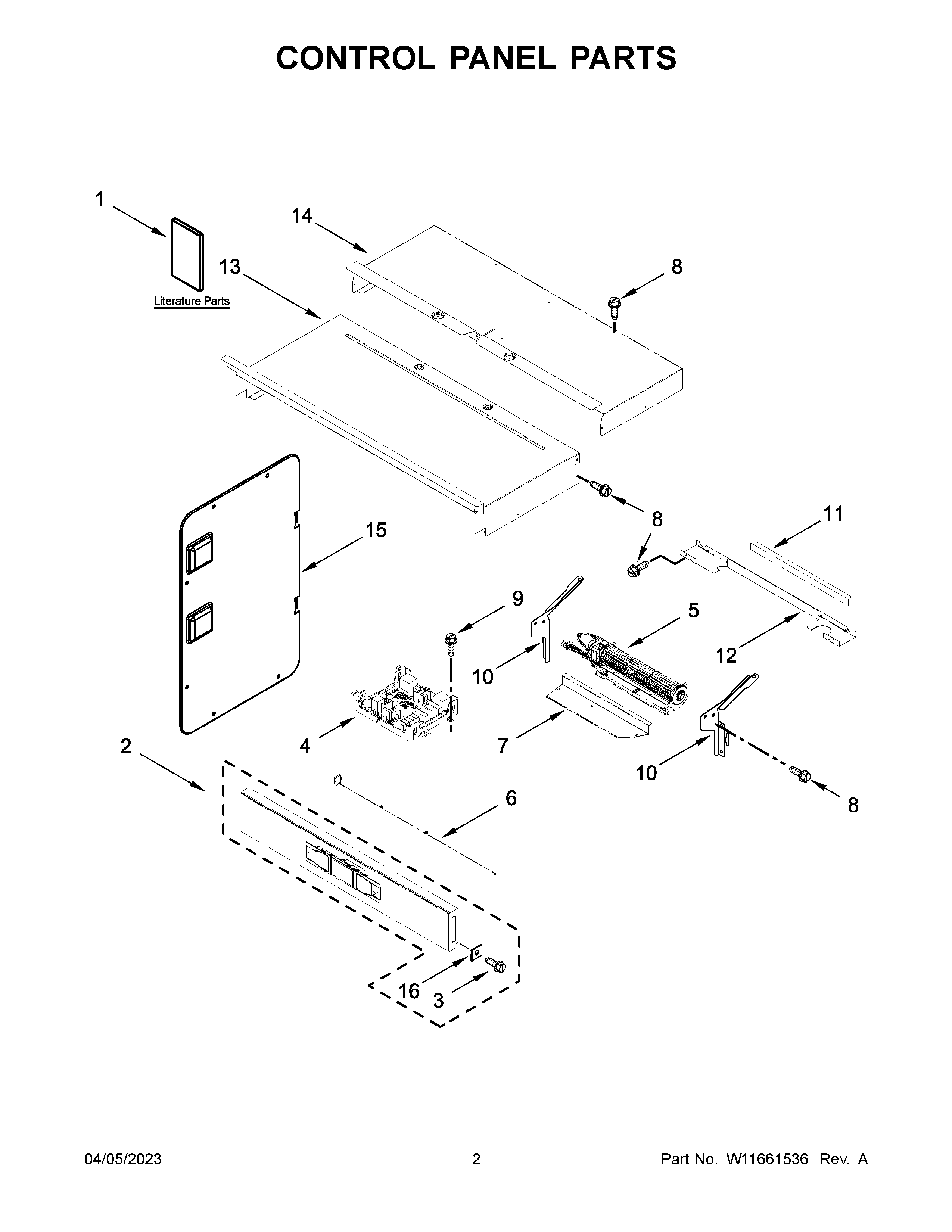

WOEC5030LB00 02 – CONTROL PANEL PARTS

WOEC5030LB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11546965 Whirlpool Wire Harness
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11226264 Whirlpool Wire Harness
NIW11578580 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NIW11356990 Whirlpool Wire Harness
NIW11727826 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, SIGNAL
NIHARNESS, INTERLOCK
NIHARNESS, INPUT
NIHARNESS, MAIN
NIW11539494 Whirlpool Wire Harness
1AQUICK START GUIDE
1BTECH SHEET
1OWNER'S MANUAL
2AW11659270-includeCORE Whirlpool Console+Core
2W11659269-includeCORE Whirlpool Console+Core
3SCREW (BLACK)
4W11649350-includeCORE Whirlpool W11649350 Washer Electronic Control Board + Core
5BLOWER
6W11537624 Whirlpool Antenna Assembly
7W10681157 Whirlpool Fan Cover
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12DIVIDER, CHASSIS BACK
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15W10655467 Whirlpool Side Cover
16WP4450118 Whirlpool Nut
