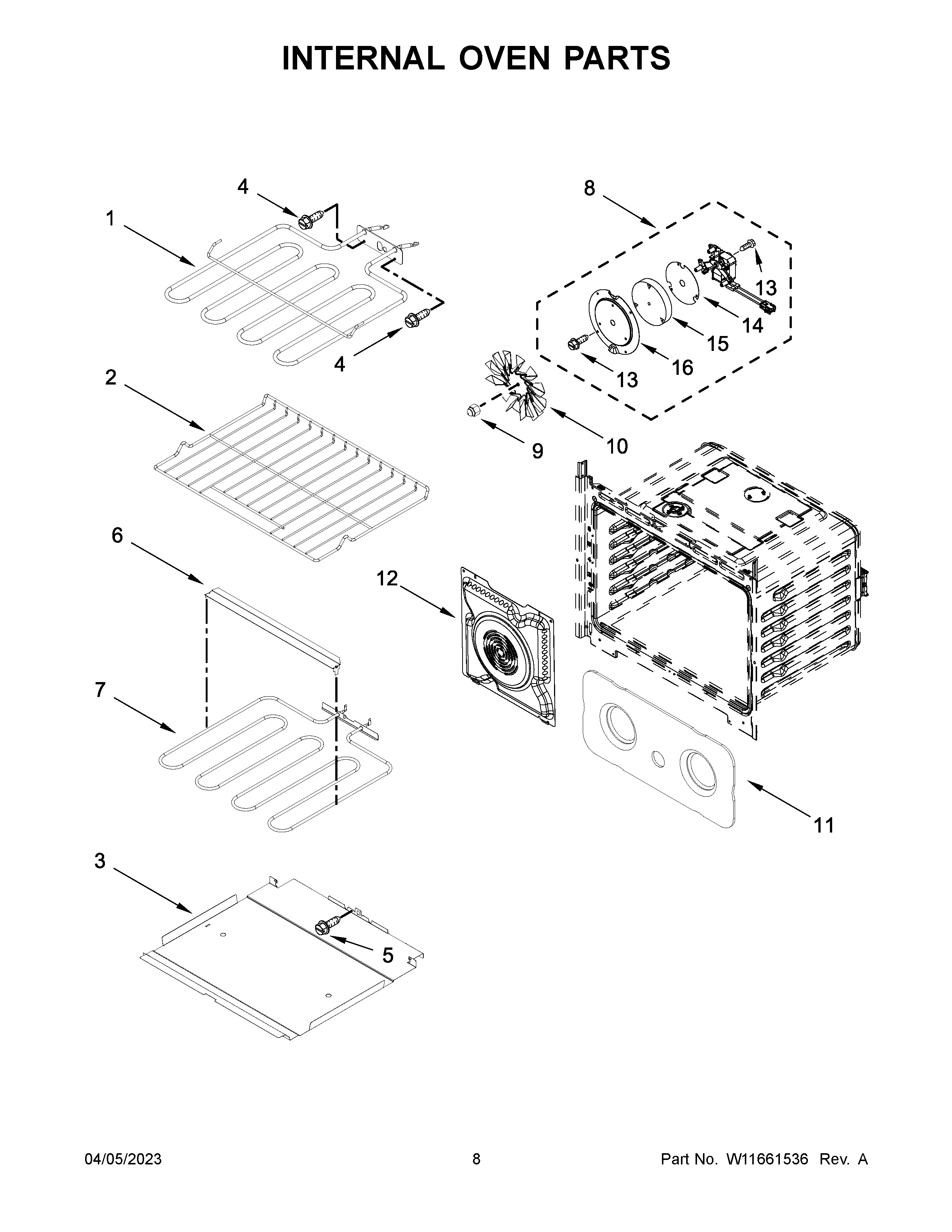

WOEC5030LW00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11617232 Whirlpool Broil Element
2	W11218798 Whirlpool Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11617227 Whirlpool Fan Motor
9	W11548755 Whirlpool Nut
10	W11548753 Whirlpool Convection Fan
11	PLATE, RING ELEMENT
12	W10359278 Whirlpool Baffle Conv
13	W10850807 Whirlpool Screw
14	PLATE, CONVECT MOTOR
15	INSULATION, CONVECT MOTOR
16	COVER, CONVECT PLATE
