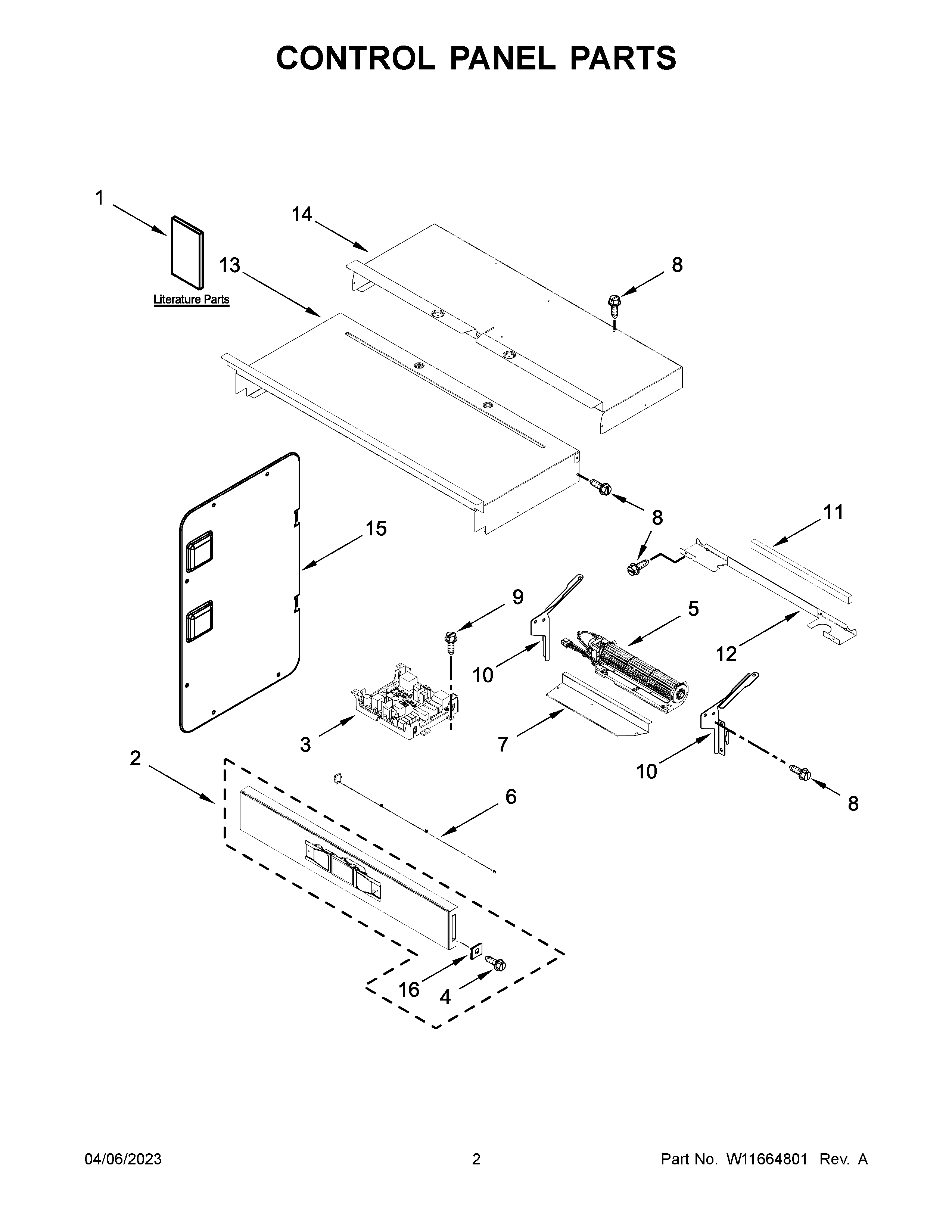

WOEC5930LZ00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11546965 Whirlpool Wire Harness
NI	W11578580 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11226264 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, SIGNAL
NI	HARNESS, INTERLOCK
NI	HARNESS, INPUT
NI	HARNESS, MAIN
NI	W11539494 Whirlpool Wire Harness
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	W11659269-includeCORE Whirlpool Console+Core
3	W11649350-includeCORE Whirlpool W11649350 Washer Electronic Control Board + Core
4	SCREW (BLACK)
5	BLOWER
6	W11537624 Whirlpool Antenna Assembly
7	W10681157 Whirlpool Fan Cover
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	DIVIDER, CHASSIS BACK
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
15	W10655467 Whirlpool Side Cover
16	WP4450118 Whirlpool Nut
