WOEC5930LZ00 03 – OVEN PARTS

WOEC5930LZ00 03 – OVEN PARTS

Written by

in

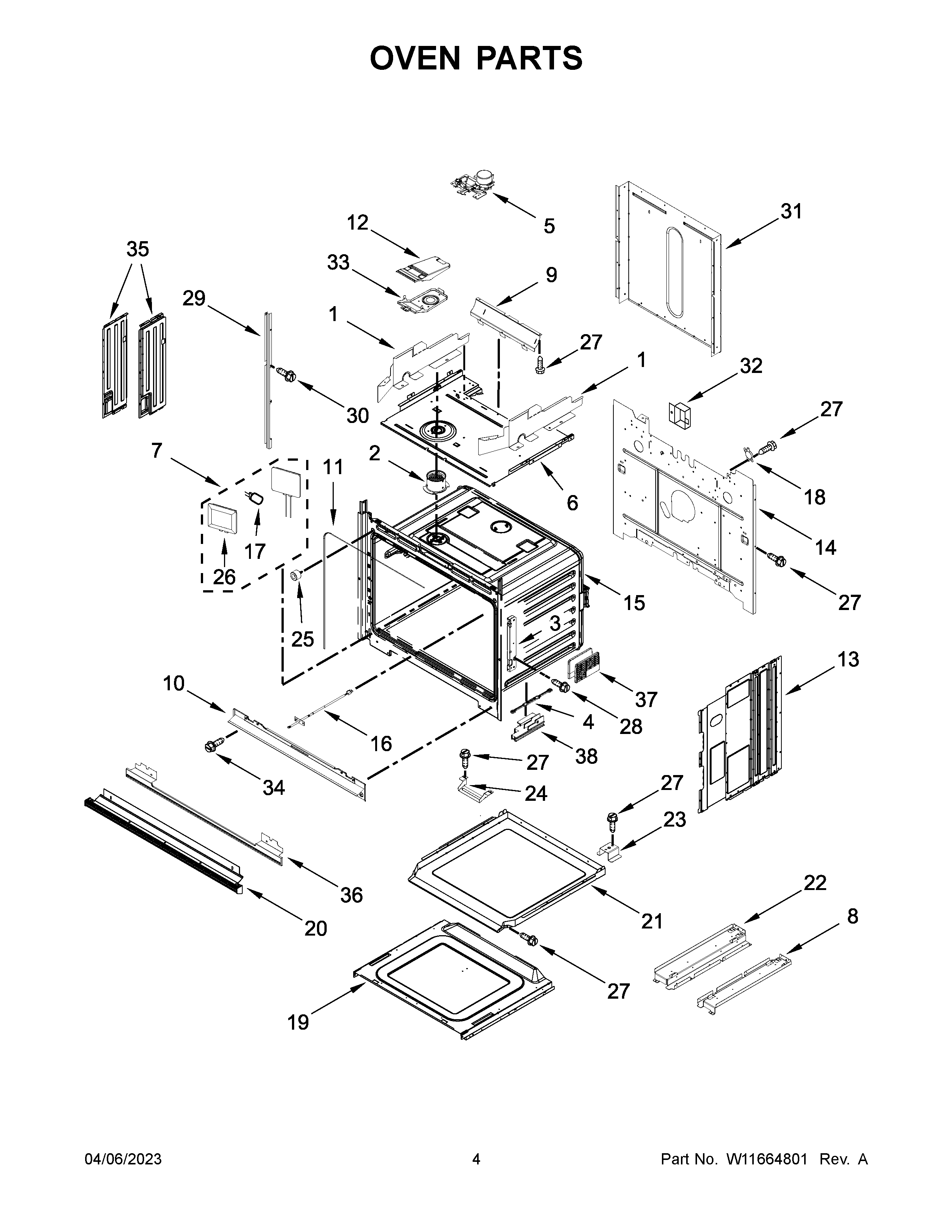

WOEC5930LZ00 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, CAVITY
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
1ADEFLECTOR, CHASSIS (RIGHT)
1DEFLECTOR, CHASSIS (LEFT)
2W11240525 Whirlpool Vent Tube
3AW11712406 Whirlpool Receiver Hinge
3W11712405 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W10283021 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10VENT-OVEN
11W11676903 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS
16W11598120 Whirlpool Thermostat
17WPW10472384 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11648980 Whirlpool Vent
21COVR-ACESS
22W10283020 Whirlpool Support
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
26WPW10519866 Whirlpool Light
27SCREW
28WPW10254050 Whirlpool Screw
29TRIM
29ATRIM
30W11602623 Whirlpool Screw
31W11134657 Whirlpool Rear Cover
328285593 Whirlpool Oven Wire Cover
33BASE, VENT EXHAUST
34WPY706189 Whirlpool Stove Screw
35AW11598151 Whirlpool Side Cover
35W11598150 Whirlpool Side Cover
36W11714646 Whirlpool Trim Assembly
37W11598170 Whirlpool Level Foot
38AW11598168 Whirlpool Leveling Foot
38W11598169 Whirlpool Foot Level Assembly
