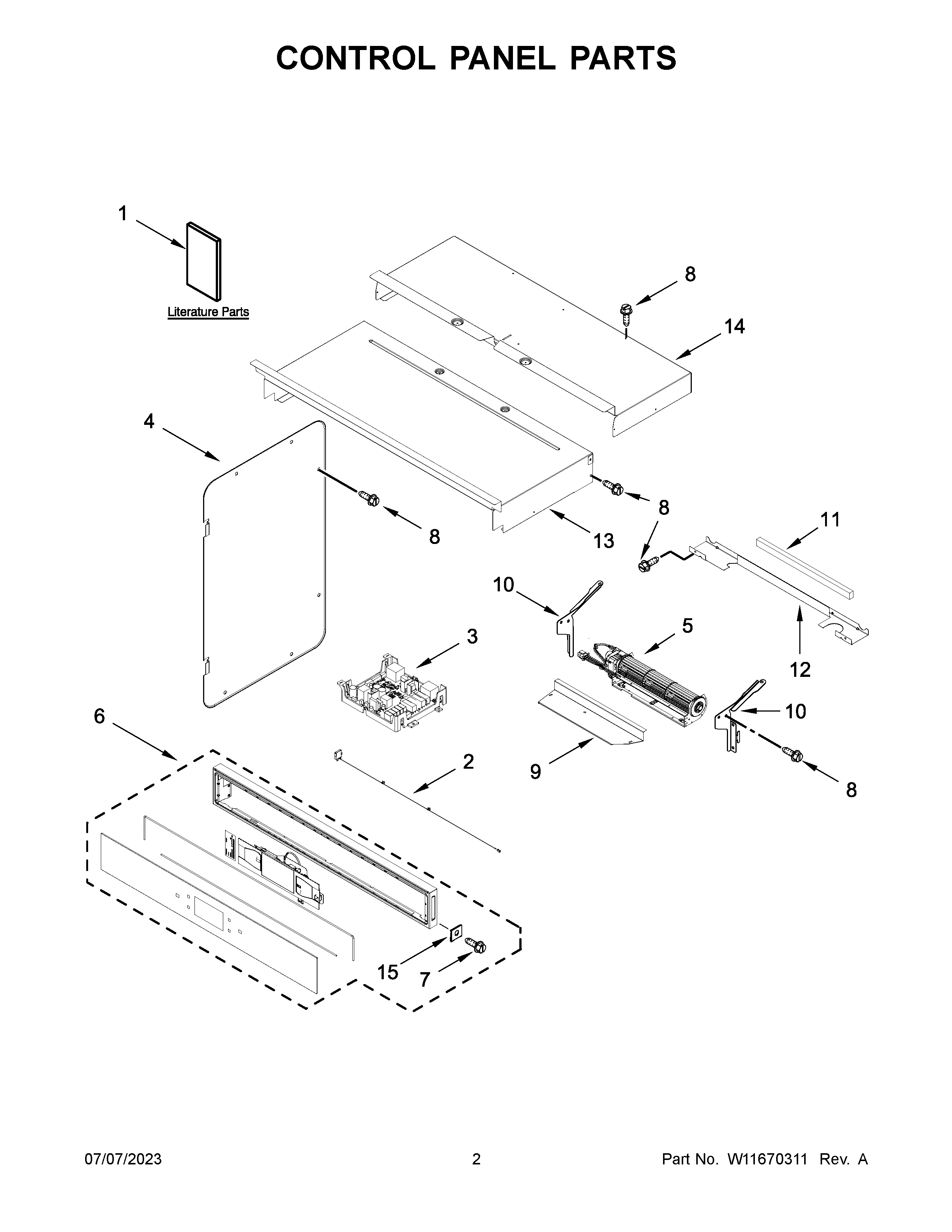

WOEC7030PV00 02 – CONTROL PANEL PARTS

WOEC7030PV00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11731943 Whirlpool Wire Harness
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11539494 Whirlpool Wire Harness
NIW11546965 Whirlpool Wire Harness
NIW11578580 Whirlpool Wire Harness
NIW11356990 Whirlpool Wire Harness
NIW11356991 Whirlpool Wire Harness
NIHARNESS, SIGNAL
NIHARNESS, INTERLOCK
NIHARNESS, INPUT
NI16515 Whirlpool Clip
NIW11727826 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
1BTECH SHEET
1OWNER'S MANUAL
1AQUICK START GUIDE
2W11537624 Whirlpool Antenna Assembly
3W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4W10655467 Whirlpool Side Cover
5BLOWER
6W11674996 Whirlpool Console with Core
7SCREW (BLACK)
8SCREW
9W10681157 Whirlpool Fan Cover
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12DIVIDER, CHASSIS BACK
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15WP4450118 Whirlpool Nut
