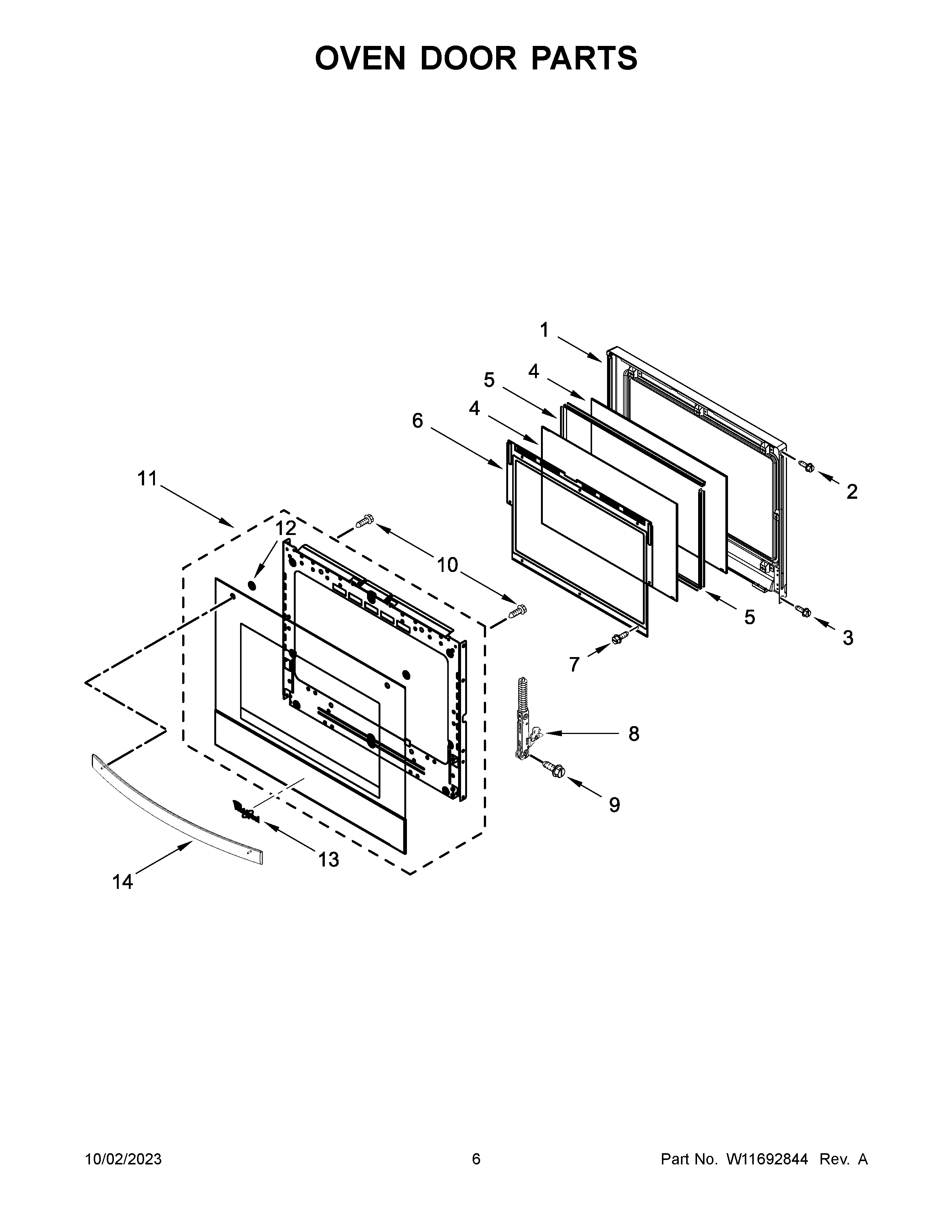

WOEC7030PZ01 04 – OVEN DOOR PARTS

WOEC7030PZ01 04 – OVEN DOOR PARTS

Written by

in

WOEC7030PZ01 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11617223 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10618107 Whirlpool Door Glass Assembly
5SPACER
6W11598182 Whirlpool Retainer Clip
7SCREW
8AW11665209 Whirlpool Door Hinge
8W11665208 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11654056 Whirlpool Door Glass
11AGLASS-DOOR
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14AHNDLE-DOOR
14W11648756 Whirlpool Door Handle
