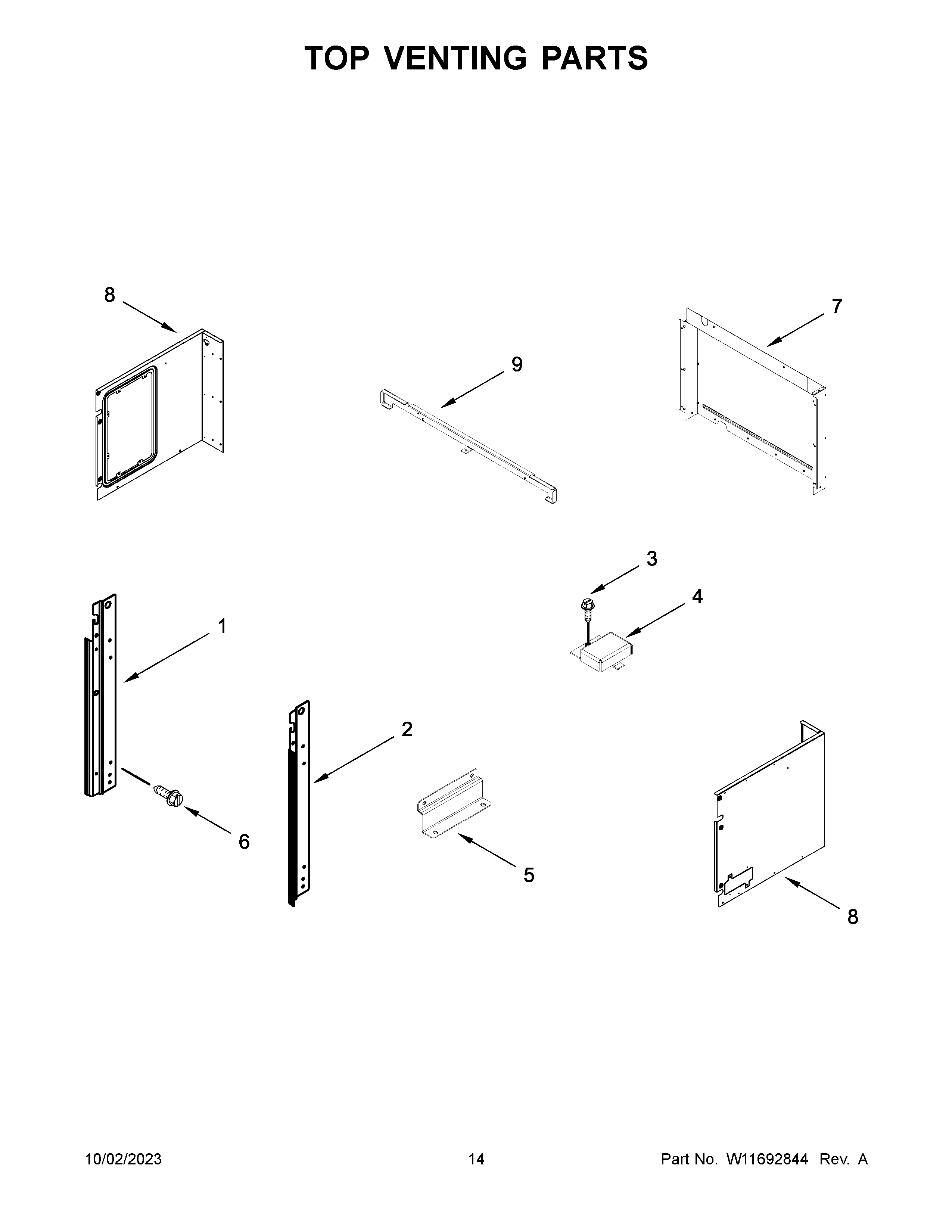

WOEC7030PZ01 08 – TOP VENTING PARTS

Products

PositionProduct
1W11627410 Whirlpool Mounting Rail
2W11627411 Whirlpool Mounting Rail
3SCREW
48285593 Whirlpool Oven Wire Cover
5W10283024 Whirlpool Mounting Bracket
6SCREW (BLACK)
7COVER-REAR
8SIDE, COMBO CHASSIS (LEFT)
8ASIDE, COMBO CHASSIS (RIGHT)
9W10283022 Whirlpool Support
