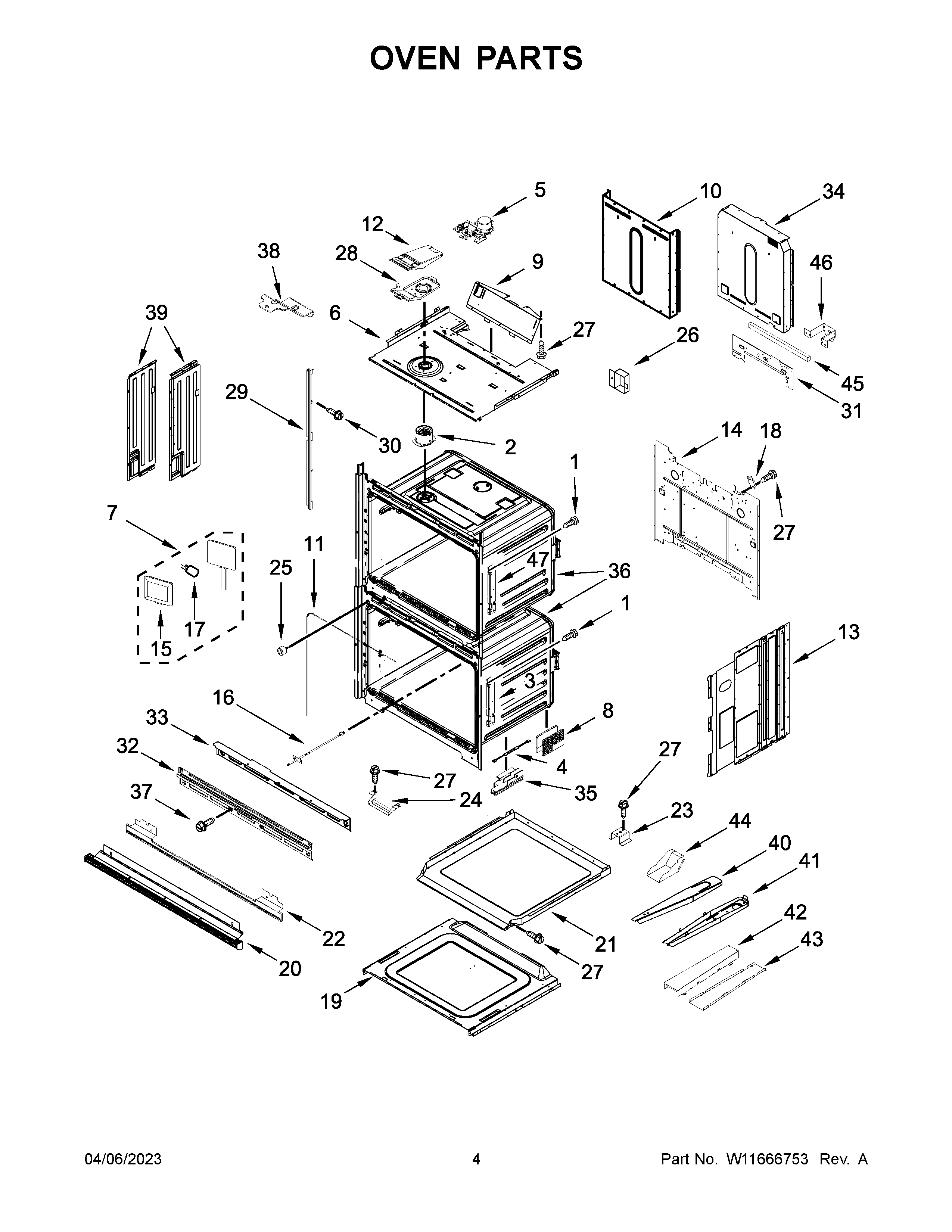

WOED3030LS00 03 – OVEN PARTS

WOED3030LS00 03 – OVEN PARTS

Written by

in

WOED3030LS00 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, CAVITY
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3AW11712406 Whirlpool Receiver Hinge
3W11712405 Whirlpool Receiver Hinge
4W11598152 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11292252 Whirlpool Oven Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11134657 Whirlpool Rear Cover
11W11676903 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS (LOWER)
15WPW10519866 Whirlpool Light
16W11598120 Whirlpool Thermostat
17WPW10472384 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19COVR-ACESS
20W11648980 Whirlpool Vent
21COVR-ACESS
22W11714646 Whirlpool Trim Assembly
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
268285593 Whirlpool Oven Wire Cover
27SCREW
28BASE, VENT EXHAUST
29W11235460 Whirlpool Mounting Rail
29AW11235461 Whirlpool Rail Mounting
30W11602623 Whirlpool Screw
31BRACKET, U-SHAPE
32W11235482 Whirlpool Exhaust Vent
33W11715951 Whirlpool Vent Trim
34W11165250 Whirlpool Rear Cover
35W11598169 Whirlpool Foot Level Assembly
35AW11598168 Whirlpool Leveling Foot
37WPY706189 Whirlpool Stove Screw
38BRACKET, TOP FRONT
39W11598150 Whirlpool Side Cover
39AW11598151 Whirlpool Side Cover
40COVER, TOP BACK EXHAUST
41BASE, TOP BACK EXHAUST
42COVER, LOWER BACK EXHAUST
43BASE, LOWER BACK EXHAUST
44DEFLECTOR, LOWER BACK EXHAUST
45FOAM, U-BRACKET
46HAT BRACKET, VENT
47HINGE-RECV
