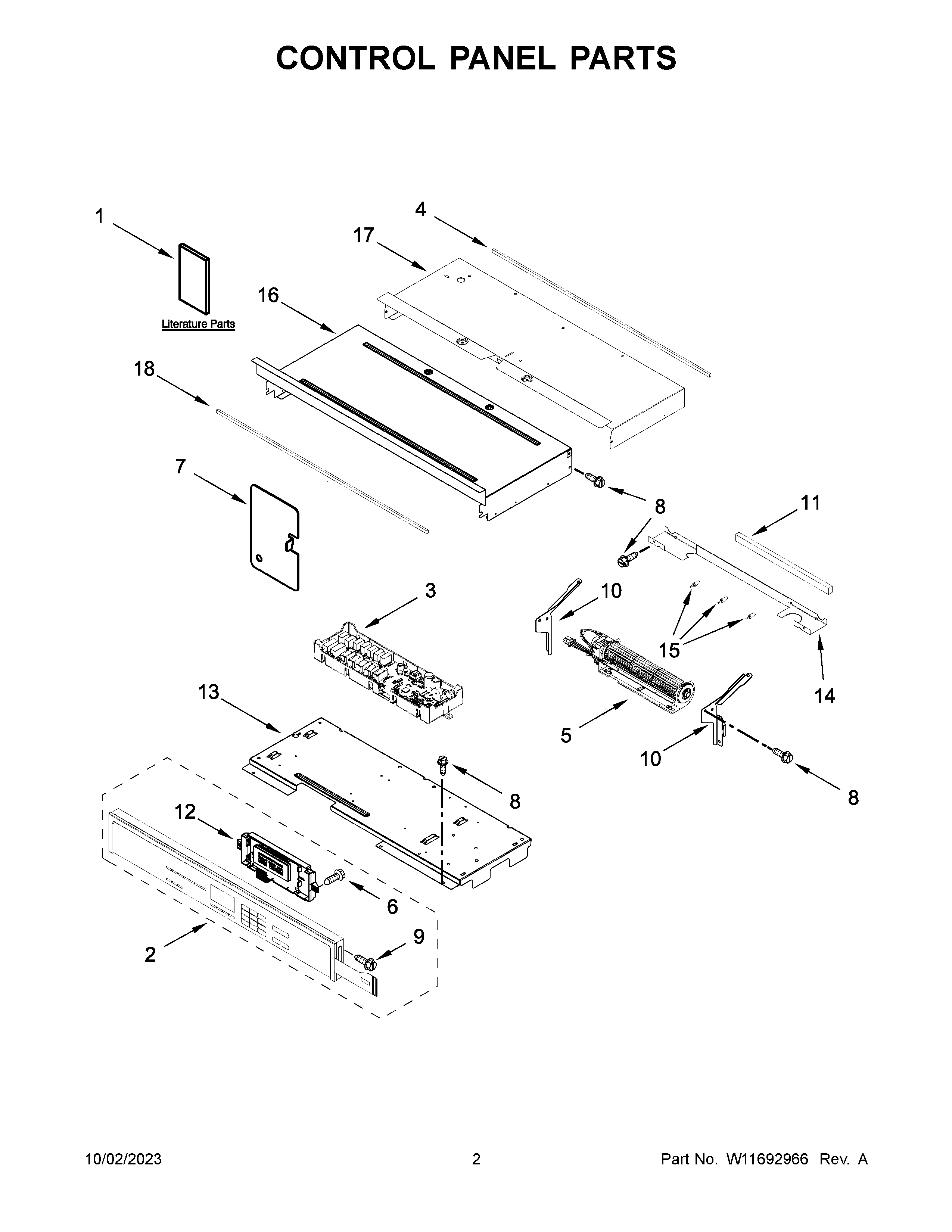

WOED3030LS01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W10487999 Whirlpool Clip
NI	W10655464 Whirlpool Bracket
NI	W11727826 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	16515 Whirlpool Clip
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11157775 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	HARNESS, SIGNAL
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11659259-includeCORE Whirlpool Console+Core
3	W11649137 Whirlpool Electronic Control Board + Core
4	W10728475 Whirlpool Foam Seal
5	BLOWER
6	SCREW
7	COVER, WIFI
8	SCREW
9	SCREW (BLACK)
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
17	COVER, 30 IN CHASSIS TOP BACK
18	GASKET, RUBBER
