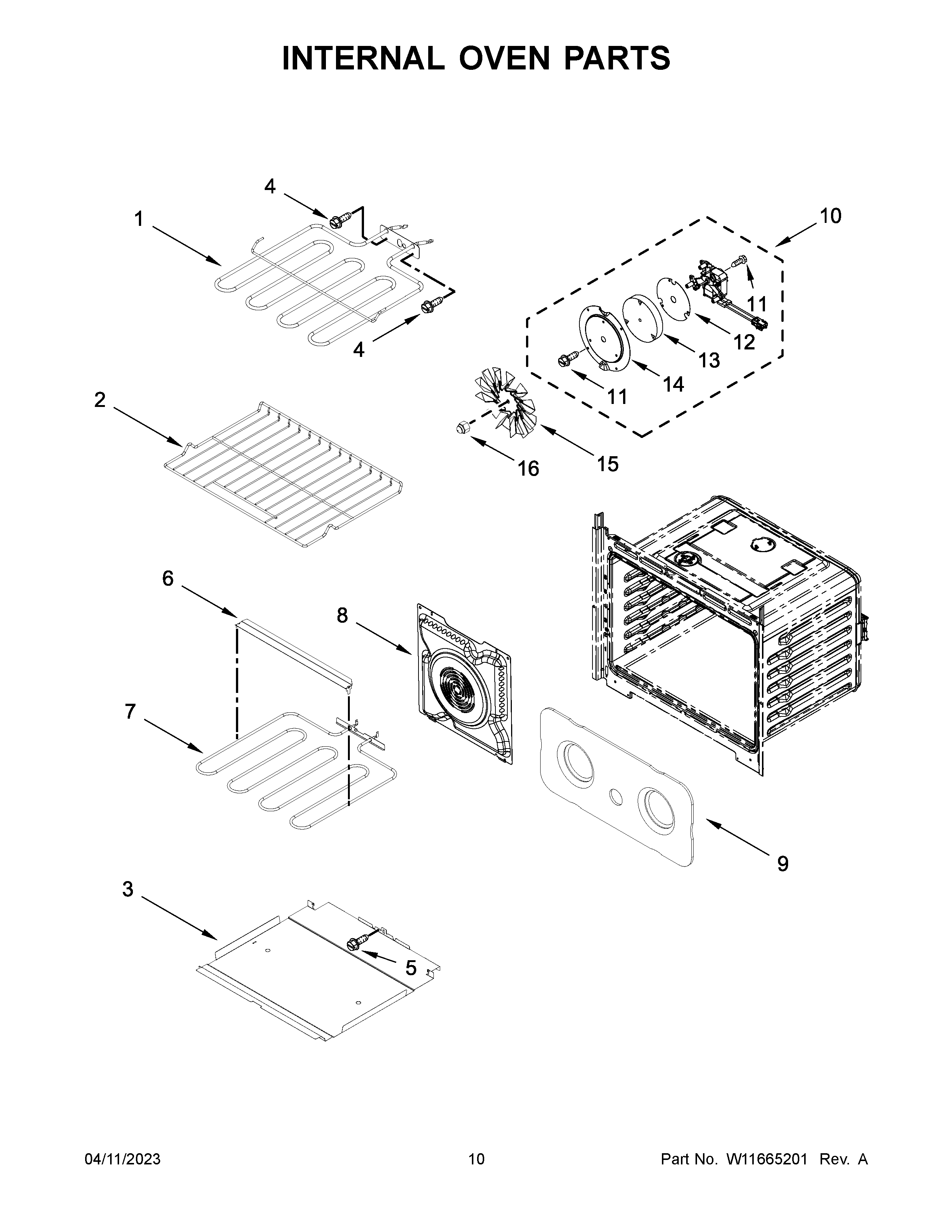

WOED5027LB00 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11617232 Whirlpool Broil Element
2	WPW10317431 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10359278 Whirlpool Baffle Conv
9	PLATE, RING ELEMENT
10	W11617227 Whirlpool Fan Motor
11	W10850807 Whirlpool Screw
12	PLATE, CONVECT MOTOR
13	INSULATION, CONVECT MOTOR
14	COVER, CONVECT PLATE
15	W11548753 Whirlpool Convection Fan
16	W11548755 Whirlpool Nut
