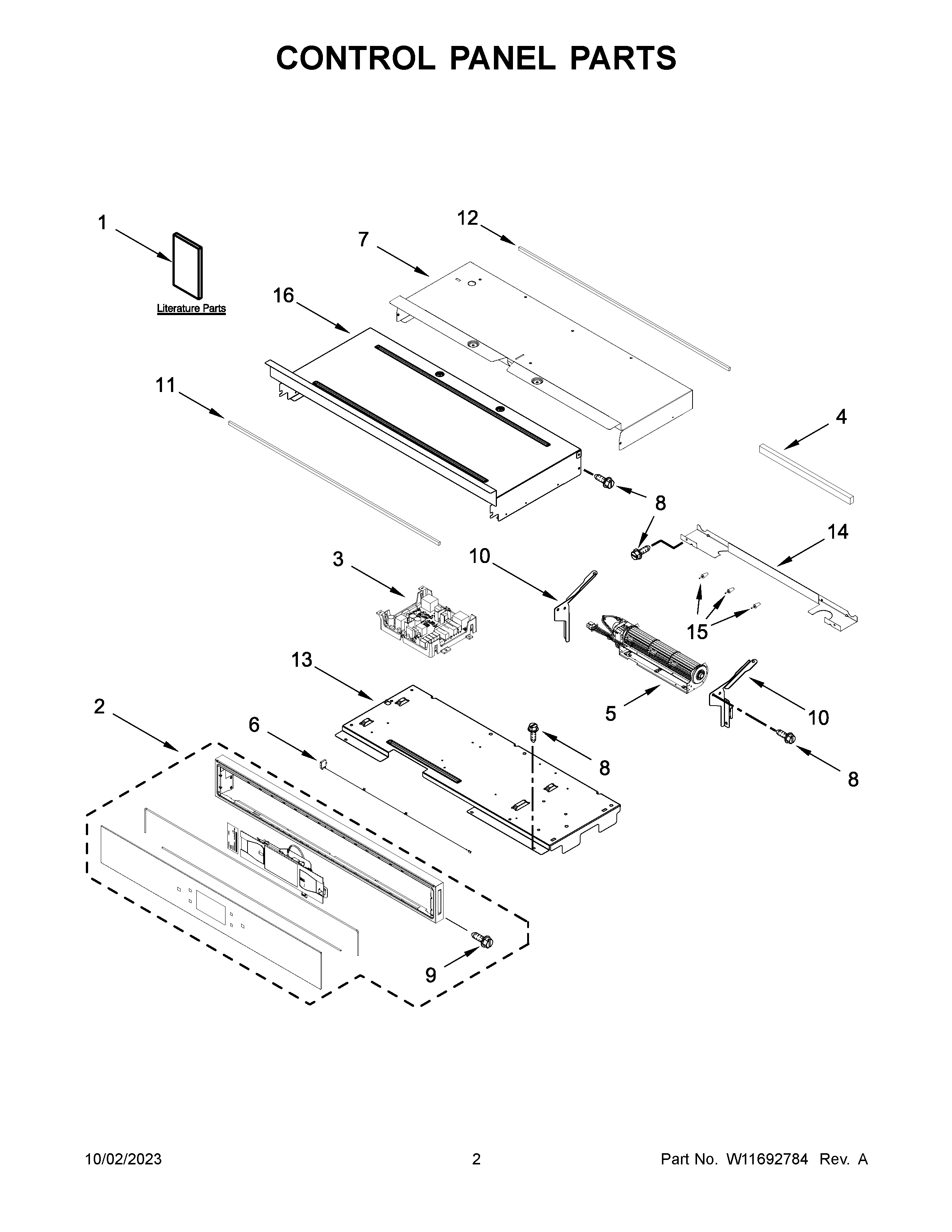

WOED7030PV01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	16515 Whirlpool Clip
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11233570 Whirlpool Wire Harness
NI	W11245677 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11727826 Whirlpool Wire Harness
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11670539 Whirlpool Console with Core
2A	W11670541 Whirlpool Console with Core
3A	W11261164-includeCORE Whirlpool W11261164 Refrigerator Electronic Control Board + Core
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10491987 Whirlpool Foam Seal
5	BLOWER
6	W11537624 Whirlpool Antenna Assembly
7	COVER, 30 IN CHASSIS TOP BACK
8	SCREW
9	SCREW (BLACK)
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	GASKET, RUBBER
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
