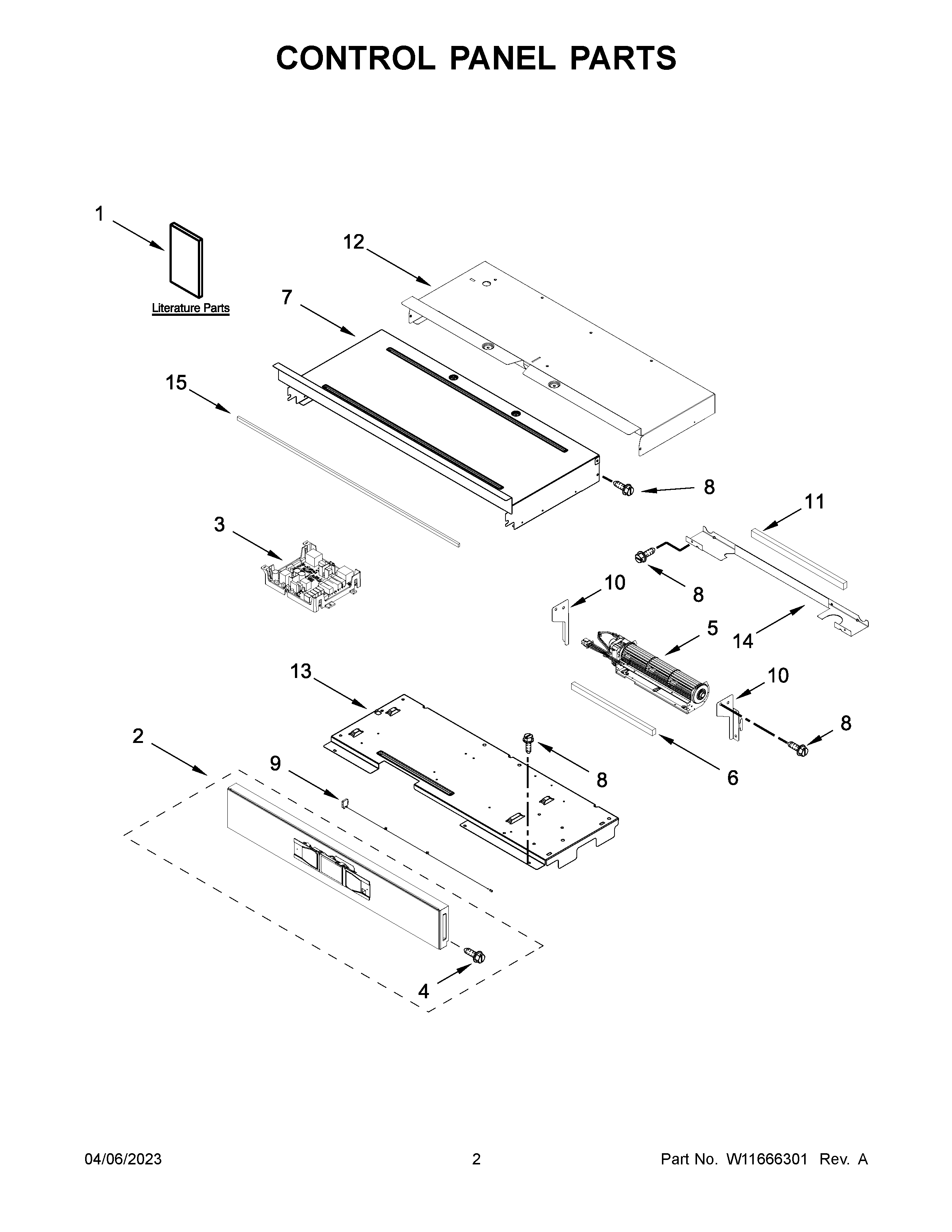

WOES5030LB00 02 – CONTROL PANEL PARTS

WOES5030LB00 02 – CONTROL PANEL PARTS

Written by

in

WOES5030LB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11699910 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW10655464 Whirlpool Bracket
NIW11727826 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NIBAG, HARDWARE
NIW11256626 Whirlpool Wire Harness
NIHARNESS, MAIN
NIW10487999 Whirlpool Clip
1OWNER'S MANUAL
1AQUICK START GUIDE
1BTECH SHEET
2AW11659262-includeCORE Whirlpool W11659262 Console with Core
2W11659261-includeCORE Whirlpool W11659261 Console with Core
3W11649350-includeCORE Whirlpool W11649350 Washer Electronic Control Board + Core
4SCREW (BLACK)
5BLOWER
6W10491987 Whirlpool Foam Seal
7COVER, 30 IN CHASSIS TOP FRONT
8SCREW
9W11537624 Whirlpool Antenna Assembly
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10728475 Whirlpool Foam Seal
12COVER, 30 IN CHASSIS TOP BACK
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15GASKET, RUBBER
